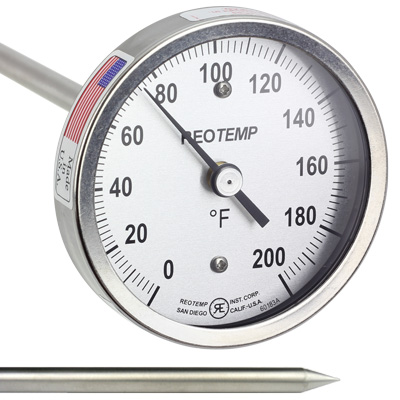

HANDHELD BREWING BIMETAL THERMOMETER

The Heavy Duty Handheld Brewing Thermometer is our most popular model. Use it to spot check mashing or other brewing processes. Add a Probe Handle to hold on to and to protect the dial. Re-calibrate with a turn of the calibration screw on the back of the dial.

  • Rugged All Stainless Steel Construction
  • Made in the USA
  • 5/16” Diameter Heavy Duty Stem
  • Hermetically Sealed Dial (Won’t Fog Up)
  • Large & Easy-to-Read 3” Dial
Accuracy ± 1% Full Scale (ASME B40.3 Grade A)
Dial Size 3”
Dial Material Anodized aluminum with black marks on satin matte finish background; Hi-Vis™ background available.
Stem Length 24″ to 84″
Stem Diameter 1/4”
Head, Bezel, Mounting Bushing, Stems 300 Series Stainless Steel
Operating Conditions Head temperature should not exceed 200°F. Stem should not be exposed to continuous temperatures exceeding 50% over-range or 800°F.
Case Rating IP67, NEMA 6 Rated (Hermetically sealed per ASME B40.3)
Lens Plastic (Polycarbonate)
Immersion Minimum 2” in liquid, and 4” in gas for most ranges. Certain ranges require up to 4” in liquids & 5” in gas
Mounting Connection  1/2” NPT
Temperature Sensing Area Last 2” to 4” of the stem
Download Install Instructions:
