DRY CAPILLARY

  • Used When Pressure Instrument Needs to be Removed from Direct Contact of Installation Point
  • All-welded 316SS Construction
  • Available up to 100 ft. in Length (Max 40 ft. in diaphragm seal assembly)
  • Max Working Pressure of 10,000 psig
  • 2mm ID Standard

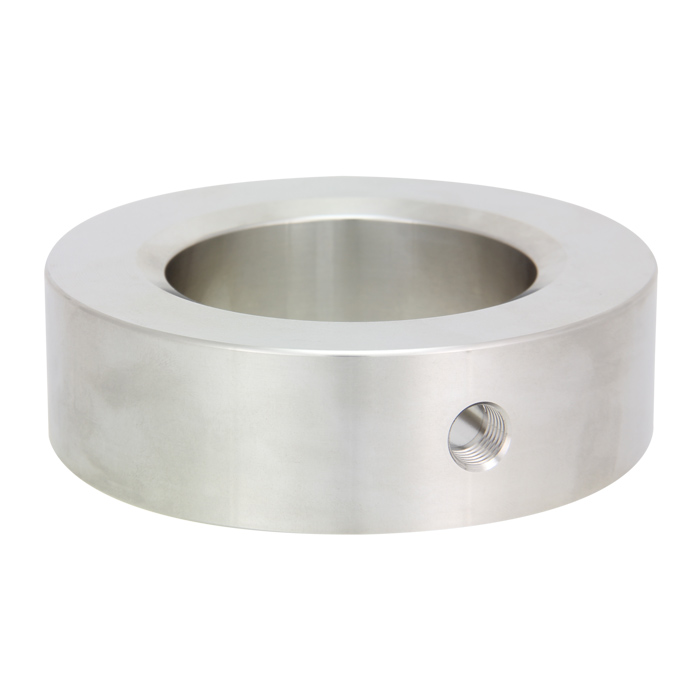

FLUSH RINGS

  • Used to Flush Process Fluid or Provide Access for Field Calibrations
  • Machined from Solid Bar Stock
  • Pressure Ratings Up to ANSI Class 2500
  • For Use with W9FF and W9FR Diaphragm Seals (Raised Face)
