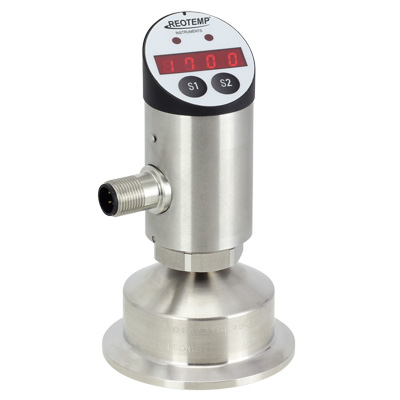

INDICATING BREW PRESSURE TRANSMITTER & SWITCH

  • 316 Stainless Steel Wetted Parts
  • ±0.5% Accuracy
  • 3 Switching Output Options
  • Short Circuit, Reverse Polarity, and Over-voltage Protection
Output Signal Single Switch & 4-20mA
Pressure Ranges -14.5 psi to 30 psi through 0 psi to 9,999 psi
Tri-Clamp Sizes 3/4″, 1.5″, 2″
Proof Pressure 0/1,450 psi = 2 x range
0/1,500 – 0/10,000 psi = 1.75 x range
Burst Pressure 0/1,450 psi = 2.5 x range
0/1,500 – 0/10,000 psi = 1.75 x range
Accuracy (BFSL) ±0.5% full scale (BFSL) ±1 digit (standard)
Input 12 Vdc to 30 Vdc
Environmental Rating IP65 or IP67 with optional protective cover
Electrical Protection Reverse polarity, short circuit, and over-voltage
Wetted Parts 316SS
Fill Glycerin USP or Neobee M20
