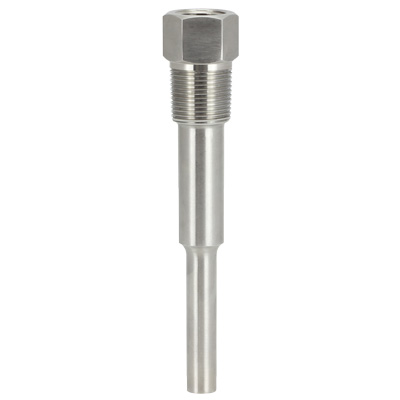

 THREADED THERMOWELLS FOR BREWING

REOTEMP Threaded Thermowells make it possible to remove a brewing instrument without dropping pressure or losing contents of the process. Thermowells also protect the instrument from getting bent by the process media. Threaded thermowells are perfect for applications that require infrequent replacement and are commonly installed on smaller pipes or vessels. They are best suited for non-corrosive media. REOTEMP threaded thermowells are machined from solid bar stock.

  • Die Stamped with Material
  • Protects Your Instrument from the Process
  • Easy Removal of Instrument for Calibration or Replacement

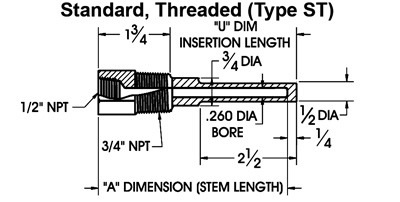

Threaded-thermowell_standard_drawing

Stem “A” Standard “U” Lagging “U” Overall Length
2.5″ 1.625″ N/A 2.875″
4″ 2.5″ N/A 4.25″
6″ 4.5″ 2.5″ 6.25″
9″ 7.5″ 4.5″ 9.25″
12″ 10.5″ 7.5″ 12.25″
