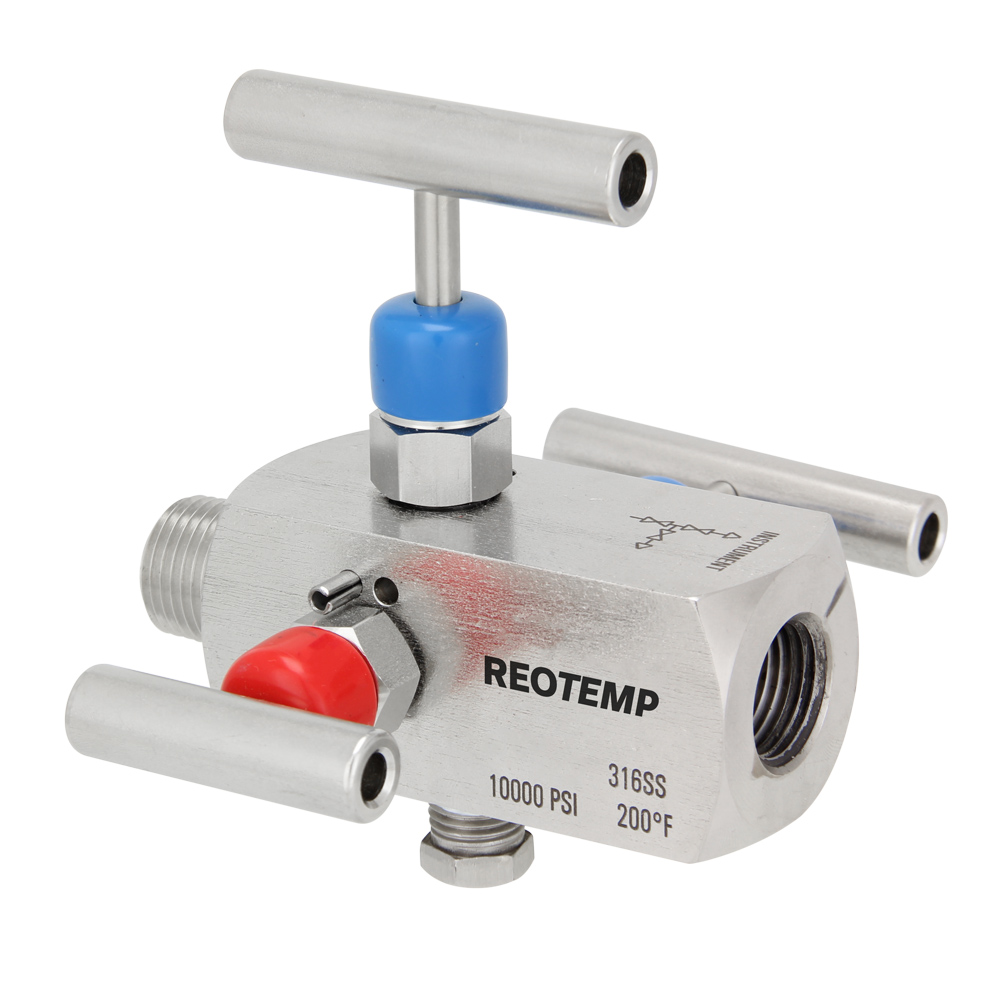

REOTEMP’s G3 Double Block & Bleed allows users more options to control their venting as well as added safety when removing instruments. This valve features an additional shutoff valve between the vent and the instrument. A bleed valve allows users to bleed the process through a 1/4” FNPT port, giving the ability to vent to atmosphere or capture the process by directly piping to the valve body.

  • 1/4” FNPT Bleed Port
  • FKM O-ring Seal and PTFE Back-up Ring Below the Stem Threads to Protect from Corrosion and Galling
  • PTFE or Grafoil Packing Optional
  • All Stems are 316SS
  • Vinyl Dust Cap for Bonnet & Stem (Non-packing)
  • Rolled Threads for Strength, Durability, and Ease of Use
  • All Valves are Helium Leak Tested for Optimal Performance
Body Material: 316 Stainless Steel, Zinc-nickel Plated Carbon Steel
Pressure Rating: Hard Seat – 10,000 psi at 200°F, Soft Seat – 6,000 psi at 200°F.
Temperature Rating: Standard up to 200°F; Available up to 1,000°F.
Orifice: 0.187”
Flow: Hard Seat CV: 0.44, Soft Seat CV: 0.76
Connections: 1/4” or 1/2”
