G12

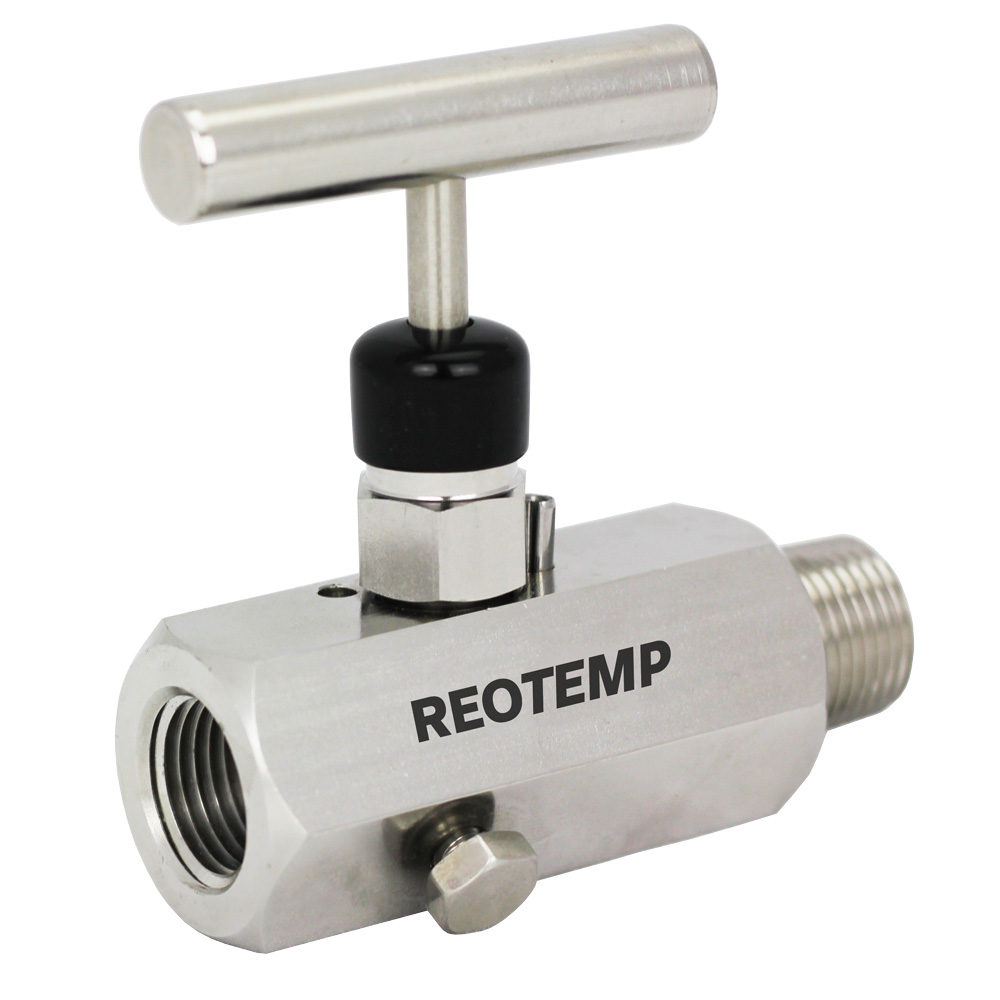

G12 SINGLE VALVE BLOCK & BLEED
Block and Bleed Valves are designed for users to isolate pressure to their instrument, bleed off excess process, and remove an instrument without disturbing or shutting down their system. Single block and bleed valves are a compact and economical solution for safe operation of pressure equipment.
- Complies with MSS SP-99 and MSS SP-132 Standards Where Applicable
- Rolled Stem Threads for Strength, Durability and Ease of Use
- Bleed Plug Standard
- 316SS Body Option Complies with NACE MR0175
- Leak Tested Before Shipping
- Available Factory-Installed on Reotemp Instruments
Body Material: 316SS, Carbon Steel, Monel, Hastelloy C276, Duplex 2205, Super Duplex 2507
Max Pressure Pressure Rating Available: 10,000 psi
Min/Max Temperature Ratings Available: -67°F to 1,000°F
Seats Available: Hard, POM, PEEK, PCTFE, ETFE
Connections Available: 1/4”NPT, 1/2”NPT, 3/4″MNPT
