M12

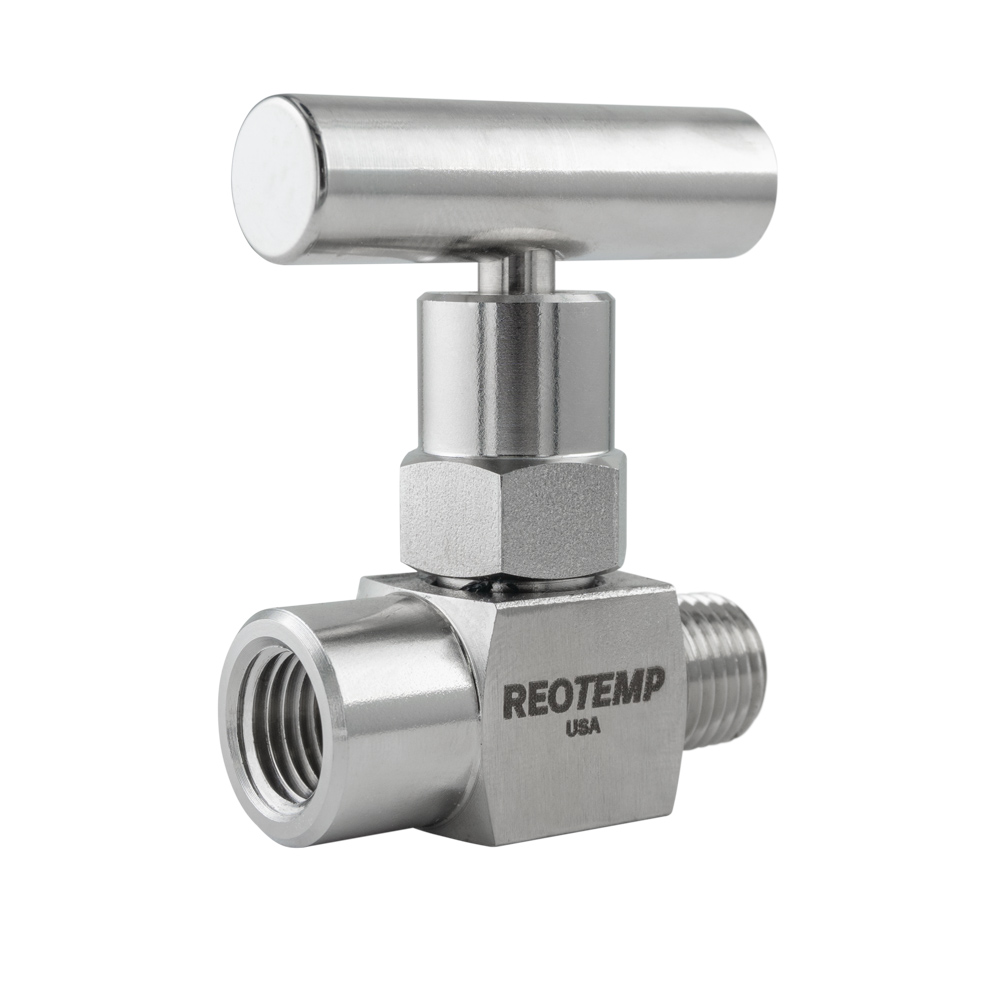

M12 MINIATURE NEEDLE VALVE
Miniature valves isolate instruments from system pressure in order that instruments can be removed without shutting down or disrupting the system. They are a compact, economical solution while still being rugged enough for demanding process conditions, and they can be added to other valve assemblies to provide convenient bleed-off capability.
- Complies with MSS SP-99 and MSS SP-132 Standards Where Applicable
- Rolled Threads for Strength, Durability, and Ease of Use
- 316SS Body Option Complies with NACE MR0175
- Leak Tested Before Shipping
- Available Factory-Installed on Reotemp Instruments
Body Materials Available: 316 Stainless Steel, Carbon Steel, Monel, Hastelloy C276, Brass
Max Pressure Rating Available: Hard Seat – 10,000 psi at 200°F,
Soft Seat: – 6,000 psi at 200°F.
Min/Max Temperature Ratings Available: -67°F to 1000°F
Seats Available: Hard, POM, PCTFE
Connections Available: 1/4″ NPT, 1/8″ NPT
Bore Soft Seat: – 0.138″ Bore
Hard Seat: – 0.172″ Bore
