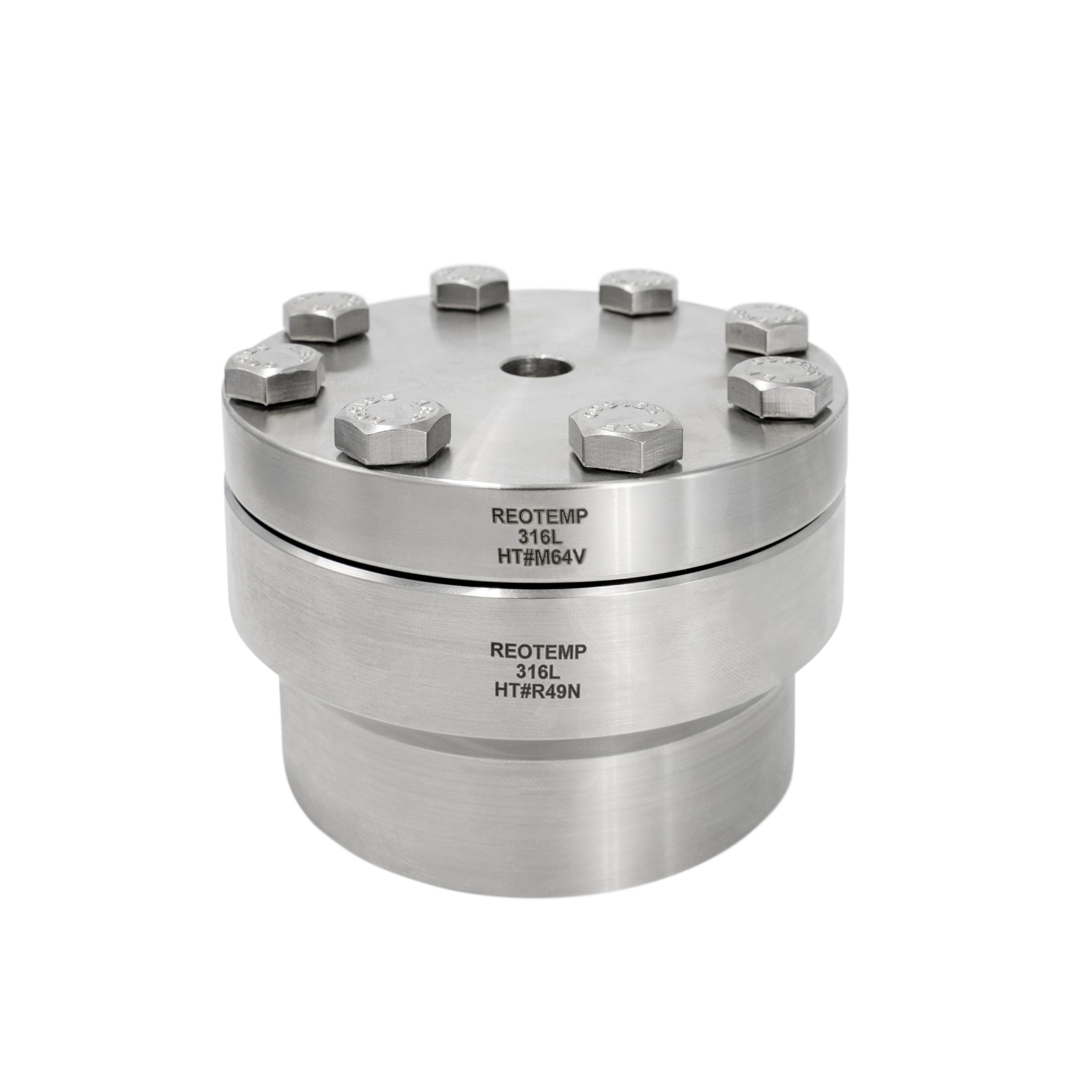

W545 SADDLE DIAPHRAGM SEAL
Reotemp’s Saddle Mount Diaphragm Seal is ideal for pressure measurement of high viscosity or clogging media where it is important to maintain uninterrupted process flow. Reotemp offers a robust and easy-to-install pipe saddle for new installations, or a variety of diaphragm seal housings to fit existing pipe saddles from other manufacturers.
- Welded Diaphragm for Maximum Durability
- Designed for applications where clogging and buildup can
occur - If your saddle is already welded in place, select
from multiple manufacturer dimensions for a drop in
replacement - Easy Cleanout of Diaphragm Cavity without Compromising
Filled System
| Diaphragm | 316 SS, Hast C-276, Tantalum, Monel, Titanium, or Others | ||||||||||||||||||
| Lower Housing | 316 SS, Hast C-276, Monel, or Others | ||||||||||||||||||
| Gasket | PTFE, Grafoil, Kalrez, Silver, Ag3N5, or Klinger | ||||||||||||||||||
| Upper Housing | 316 SS Standard | ||||||||||||||||||
| Process Temperature Limits | PTFE Gasket: -110/400ºF Klinger Gasket: -110/500ºF Grafoil Gasket: -40/750ºF Kalrez: 30/620ºF Silver Ag3N5: -150/850ºF |
||||||||||||||||||
| Ambient Temperature Limits | Determined by the pressure instrument. | ||||||||||||||||||
| Minimum Recommended Span | 2.5” & 3.5” Gauges: 15 psi 4”, 4.5”, & 6” Gauges: 30 psi Transmitter (Gauge Pressure): 150” H2O Transmitter (Differential Pressure): 300” H2Od Differential Pressure Gauge(D40/42 Only): N/A |
||||||||||||||||||
| Seal Type |
|
