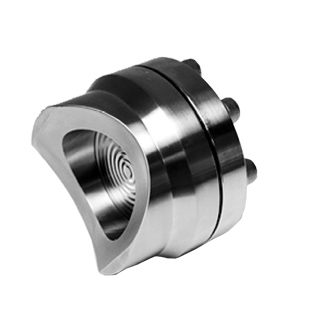

W575 FLANGED FLOW THRU DIAPHRAGM SEAL
When continuous flow is a must to prevent clogging within your line, Reotemp’s W575 may be your solution! Our Flanged flow thru is a rugged design that meets many of the rigorous specifications that are required for our Oil/Gas, Chemical and Water/Wastewater customers. We offer a multitude of flange options to ensure our unit can mate into your line with ease.
- Extra Large 4.1″ Diaphragm for Maximum Sensitivity
- Wide Variety of Wetted Material Options
- 100% Helium Leak Tested Diaphragm Welds
- Easy Cleanout Design with Multiple Flush Port Options
Diaphragm | 316/316L SS, Hast C-276, Tantalum, Monel A400, Nickel 201, or Others |
Lower Housing | 316/316L SS, Hast C-276, Monel A400, Alloy 20, Hast B, 304/304L SS, or Others |
Gasket | Klinger C-4401, PTFE Durlon 9600, Grafoil or Virgin PTFE |
Upper Housing | 316/316L SS, 304/304L SS, Monel A400, or Titanium |
Process Temperature Limits | PTFE Gasket: -110/400ºF Klinger Gasket: -110/500ºF Grafoil Gasket: -40/750ºF |
Ambient Temperature Limits | Determined by the pressure instrument. |
Minimum Recommended Span | 2.5” & 3.5” Gauges: 30” H2O 4”, 4.5”, & 6” Gauges: 30” H2O Transmitter (Gauge Pressure): 15” H2O Transmitter (Differential Pressure): 15” H2Od Differential Pressure Gauge (D40/42 Only): 100” H2Od |
Weight | 12 lbs. Note: weight is approximate. |
Maximum Working Pressure at 100ºF: | W71 Bolts Grade 8: 1,500 psi W71 Bolts 316SS: 750 psi W7N Bolts Grade 8: 4,000 psi W7N Bolts 316SS: 2,000 psi |
Download Installation Instructions:
