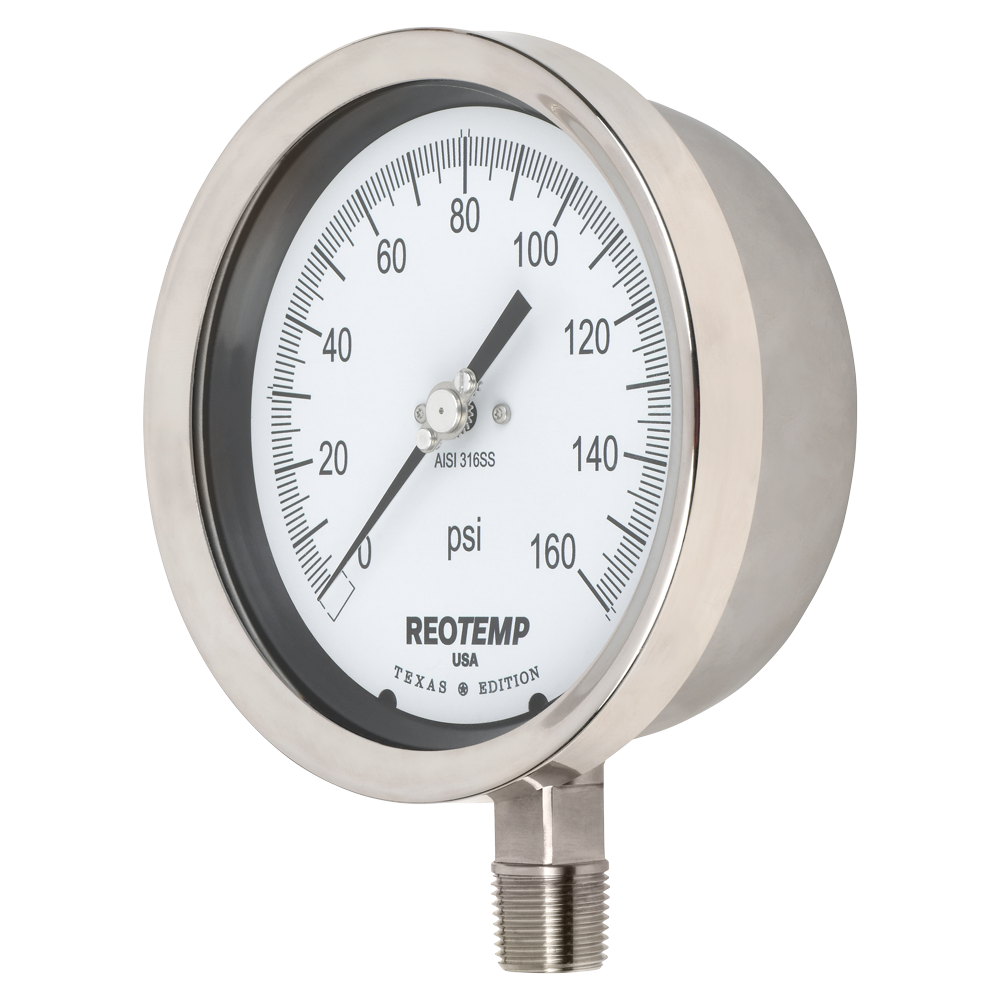

PT45T STAINLESS CASE PROCESS GAUGE
Hi-Vis™
Fillable
Custom Logo
Accuracy
Diaphragm Seal Compatible
Reotemp’s Series PT45T Stainless Case Process Gauge is designed to withstand corrosive atmospheres and media, pulsation and vibration; a very rugged gauge engineered for the process industries. For highly-corrosive, high-temperature, or severe service applications a diaphragm seal is recommended.
- Safety Pattern Design
- Solid Front/Blowout Back Safety Case
- All Stainless Steel Internal Parts
- Internal Overload and Underload Stops
- Field Fillable Case
- Micro-Adjustable Pointer with Floating Zero
| Accuracy | ±0.5%, Grade 2A (10k – 20k psi = 1% upscale, 2% downscale) |
| Ambient Limits | -40°F/150°F |
| Process Limits | -40°F/250°F |
| Process Limits with Diaphragm Seal | -60°F/400°F (Direct Mount)* -110°F/750°F (Remote Mount or Cooling Tower)* *Exact limits depend on diaphragm seal and fill fluids |
| Wetted Materials | Tube: 316SS Seamless Socket: 316SS |
| Lens | Tempered Safety Glass (Standard), Plastic or Laminated Safety Glass |
| Other Materials | Case: 316SS Ring: Twist-Off Bayonet Dial: White Aluminum, Black Letters, Case-to-Socket: O-Ring |
| Fillable | Yes |
| Restrictor Screw | Yes, removable. |
| Maximum Working Pressure | Stable = 100% Momentary = 130% of scale |
| Environmental Protection | NEMA 4X/IP65 |
| Weight | Dry = 2 lbs Filled = 3 lbs |
