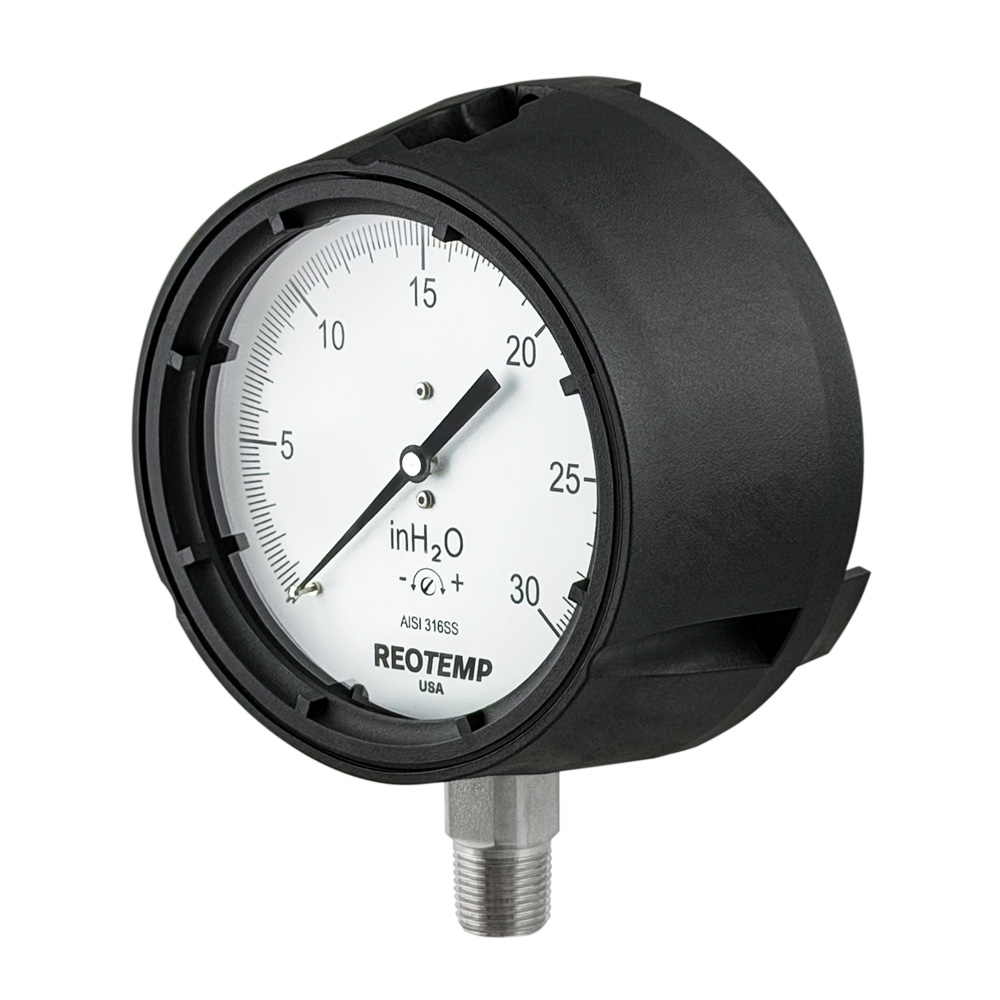

4.5″ LOW PRESSURE CAPSULE GAUGE

REOTEMP’s Series PC45 low pressure capsule gauges offer accurate and reliable measurements of gaseous media. Offered with stainless steel internals, they are designed to withstand corrosive media and ensure a long-lasting instrument.

  • Sensitive Diaphragm/Capsule Mechanism
  • Safety Blowout Back
  • Easy-Access Zero Reset Screw on Dial
  • NACE MR-0175 and MR-0103 Compliant
  • ASME B40.100 Design
Construction Materials

Non Wetted
Case: 304SS
Ring: 304SS, Bayonet Twist-Off
Dial: White Aluminum, Black Letters

Wetted
Capsule: 316LSS
Socket: 316SS

Case-to-Socket
Screw Connection & Vented Case

Lens
Tempered Safety Glass (Stdandard), Plastic, or Laminated Safety Glass

Temperature Limits

Ambient
-40°F to 150°F

Process
-40°F to 200°F

Process When Assembled with a Diaphragm Seal
Direct Mount: -60°F to 350°F
Remote Mount or Cooling Tower: -100°F to 750°F

Accuracy: 1.6% Full Scale, ASME Grade A+

Fillable: No

Restrictor Screw: Yes

Max Working Pressure: Stable = 100%, Momentary = 130% of scale

Weight: 2.5” = 0.5 lbs, 4” = 1.1 lbs, 6” = 2.1 lbs
