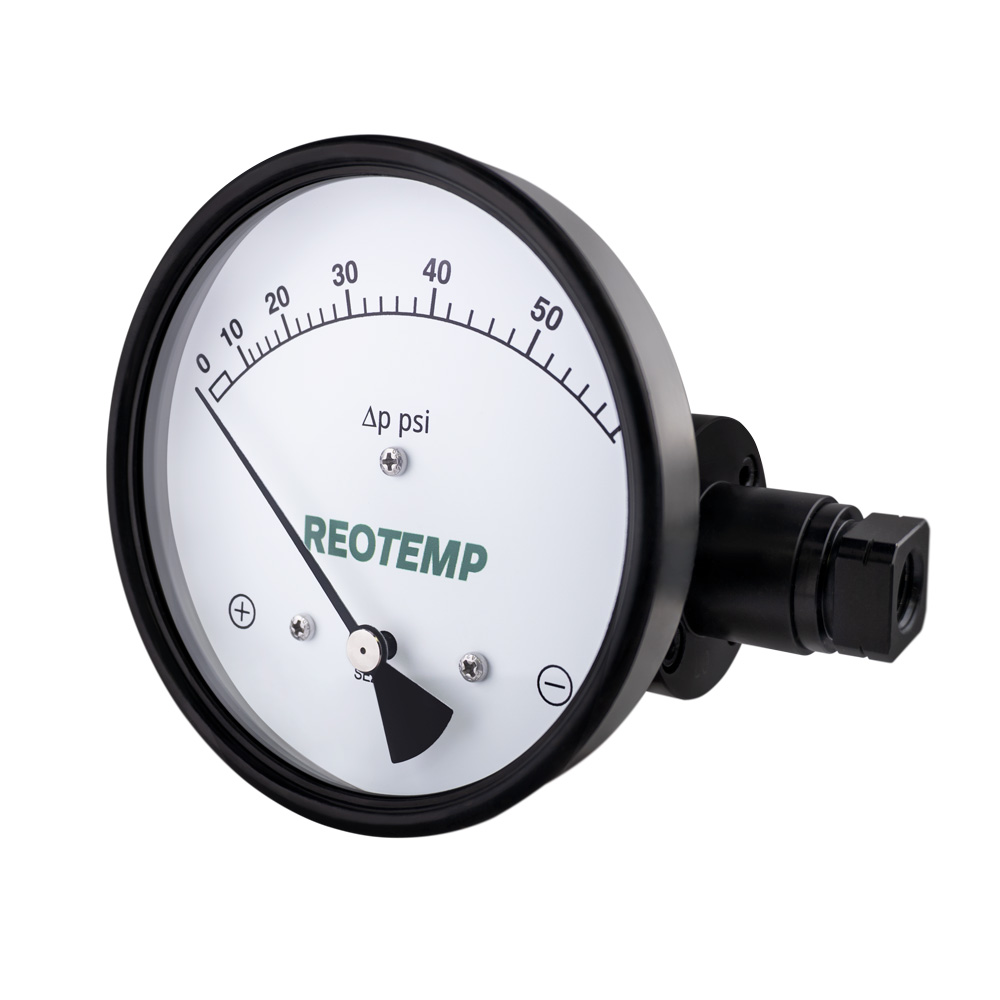

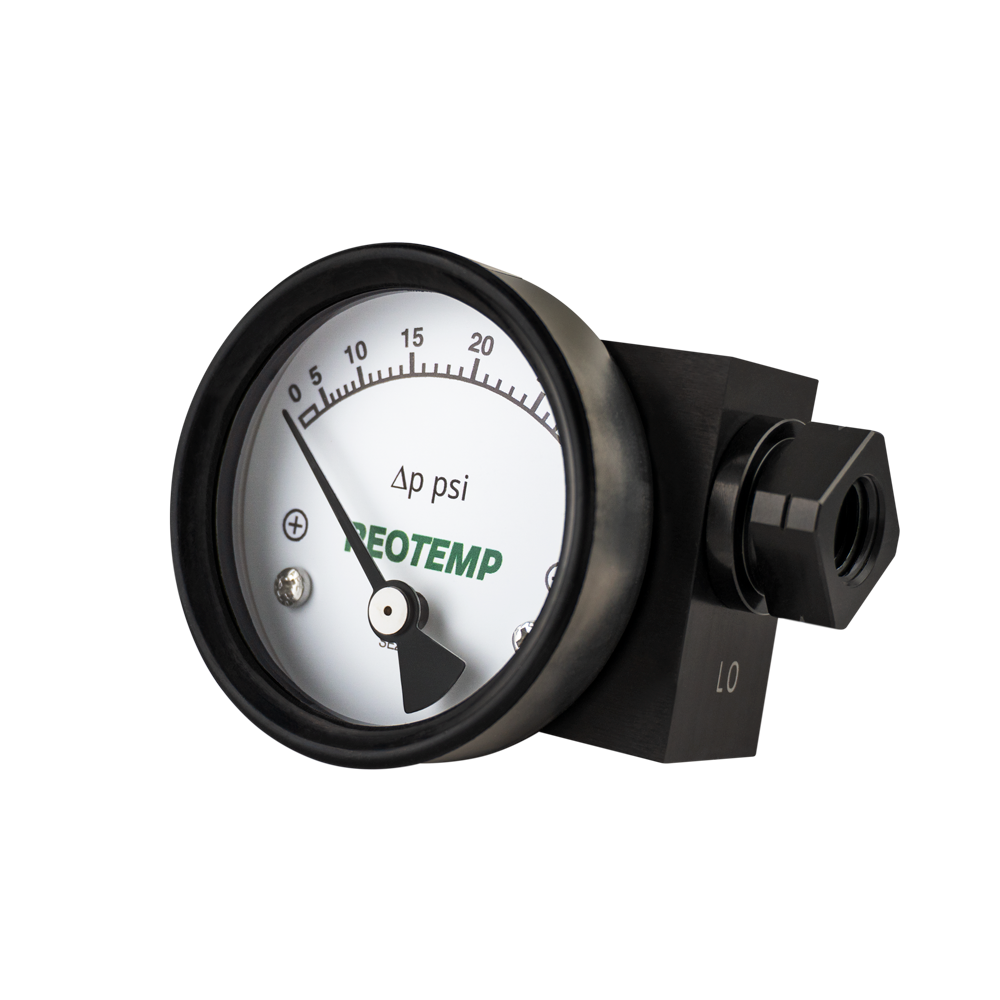

D21 PISTON TYPE MECHANICAL DIFFERENTIAL PRESSURE GAUGE
Fillable
Reotemp’s Series D21 Piston Type Mechanical Differential Pressure Gauge is recommended when both the differential and the
static pressures are high and where a small amount of migration of process media is allowed. The mechanism utilizes a piston, magnet,
and calibrated rotary movement.
- Rugged, Compact, Cost Effective Design
- Weatherproof Rated to NEMA 4/IP65
- Working Pressure Up to 6,000 psi
- Over-range Protection to Max Working PressurePopular for Filters and Strainers
- ± 2% Full Scale Ascending Accuracy
- 5 Year Warranty
Accuracy: +/- 2% Full Scale Ascending
Range: 5-1050 PSID
Ambient Limits: 32°F – 175°F*
Process Limits: 32°F – 175°F*
Process Limits with Diaphragm Seal: Series D21 cannot be mounted to a diaphragm seal. See series D40/50 for gauges mountable to a diaphragm seal.
Wetted Materials:
Body: Aluminum, 316SS, Brass, or Monel
Internal Parts: SS 302 Spring and
Ceramic Magnet Gasket/Seals: Buna-N, Viton, or EPDM
Lens: Glass (Standard), Plastic, or Safety Glass
Case: 304SS, 316SS, or Engineered Plastic
Fillable: Yes
Maximum Working Pressure: 3,000 psi Aluminum Body, 6,000 psi 316SS Body or Monel
Environmental Protection: NEMA 4/IP65
*Gauge can withstand -40°F to 200°F, but accuracy will be affected.
