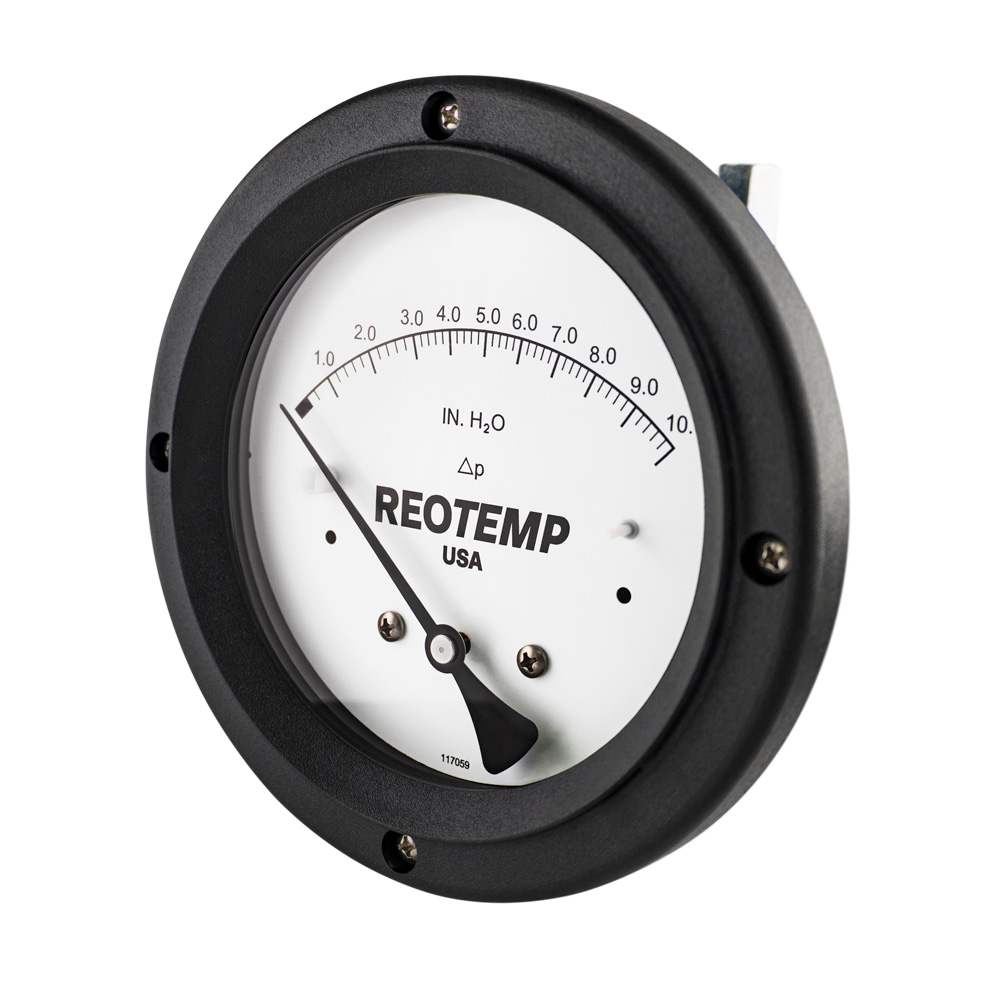

D30 DIAPHRAGM TYPE MECHANICAL DIFFERENTIAL PRESSURE GAUGE
The Reotemp Series D30 Diaphragm Type Mechanical Differential Pressure Gauge is recommended when a low range is needed as well as a complete isolation of media between the high and low sides. The mechanism utilizes a pressure capsule, magnet, and calibrated rotary movement. This differential pressure instrument can be used for many applications but is ideally suited for flow, vacuum, and liquid level service.
- Rugged Design for General Purpose
- Weatherproof Rated to NEMA 4/IP65
- Working Pressure Up to 500 psi
- Over-range Protection to Max Working Pressure
- Popular for Flow, Vacuum, and Liquid Level
Accuracy: +/- 2% Full Scale Ascending for 10″ H2Od to 400″ H2Od; +/- 5% Full Scale Accuracy Ascending for 5″ H2Od to 9.9″ H2Od
Ambient Limits: -40°F/200°F
Process Limits: -40°F/200°F
Process Limits with Diaphragm Seal: Series D30 Cannot be Mounted to a Diaphragm Seal. See Series D40 for Gauges Mountable to a Diaphragm Seal.
Wetted Materials:
Body: Aluminum, Engineered Plastic Body, 316SS, or Brass
Internal Parts: SS 316 and Ceramic Magnet
Gasket/Seals: Buna, Viton, Silicone, Neoprene, or Ethylene Propylene
Diaphragm Gasket: Buna-N, Viton, EPDM, or Silicone
Lens: Acrylic (Std) or Safety Glass
Other Materials: Case: Anodized Aluminum or Engineered Plastic
Fillable: No
Maximum Working Pressure: 500 psi for Aluminum, Brass, or SS Body 300 psi for Engineered Plastic Body
Environmental Protection: NEMA 4 and IP65
