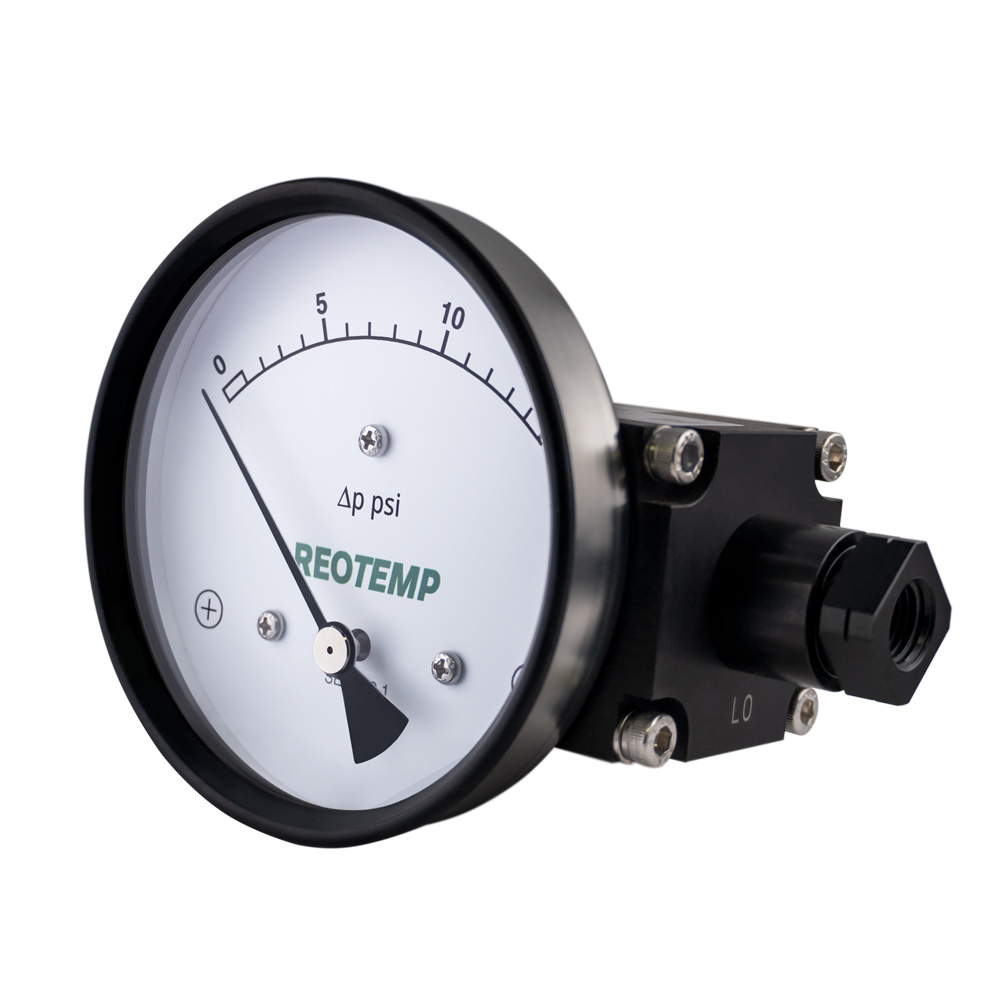

D32 DIAPHRAGM TYPE MECHANICAL DIFFERENTIAL PRESSURE GAUGE
Fillable
Accuracy Option
Reotemp’s Series D32 Diaphragm Type Mechanical Differential Pressure Gauge is recommended when no migration of process media from the high side to low side is permitted and a low range is needed. The mechanism utilizes a convoluted diaphragm, magnet, and calibrated rotary movement.
- Rugged, Compact, Cost Effective Design
- Weatherproof Rated to NEMA 4/IP65
- Working Pressure Up to 1,500 psi
- Over-range Protection to Max Working Pressure on High Side
- Popular for Filters, Backflow Prevention, Flow Rate Monitoring, Liquid Tank Level Measurement, Pump/Blower Performance
- 5 Year Warranty
Accuracy: +/- 2% Full Scale Ascending (Optional +/- 1%)
Range: 1-60 PSID
Wetted Materials:
Body: Aluminum, 316SS, Brass, or Monel Internal Parts: SS 302 Spring and Ceramic Magnet
Diaphragm Gasket: Buna-N, Viton, EPDM, or Silicone
Lens: Glass (Standard), Plastic, or Safety Glass
Case: 304SS, 316SS, or Engineered Plastic
Fillable: Yes
Maximum Working Pressure: 1,500 psi
Environmental Protection: 304SS, 316SS, or Engineered Plastic
Fillable: Yes
Maximum Working Pressure: 3,000 psi Aluminum Body, 6,000 psi 316SS Body or Monel
Environmental Protection: NEMA 4/IP65
