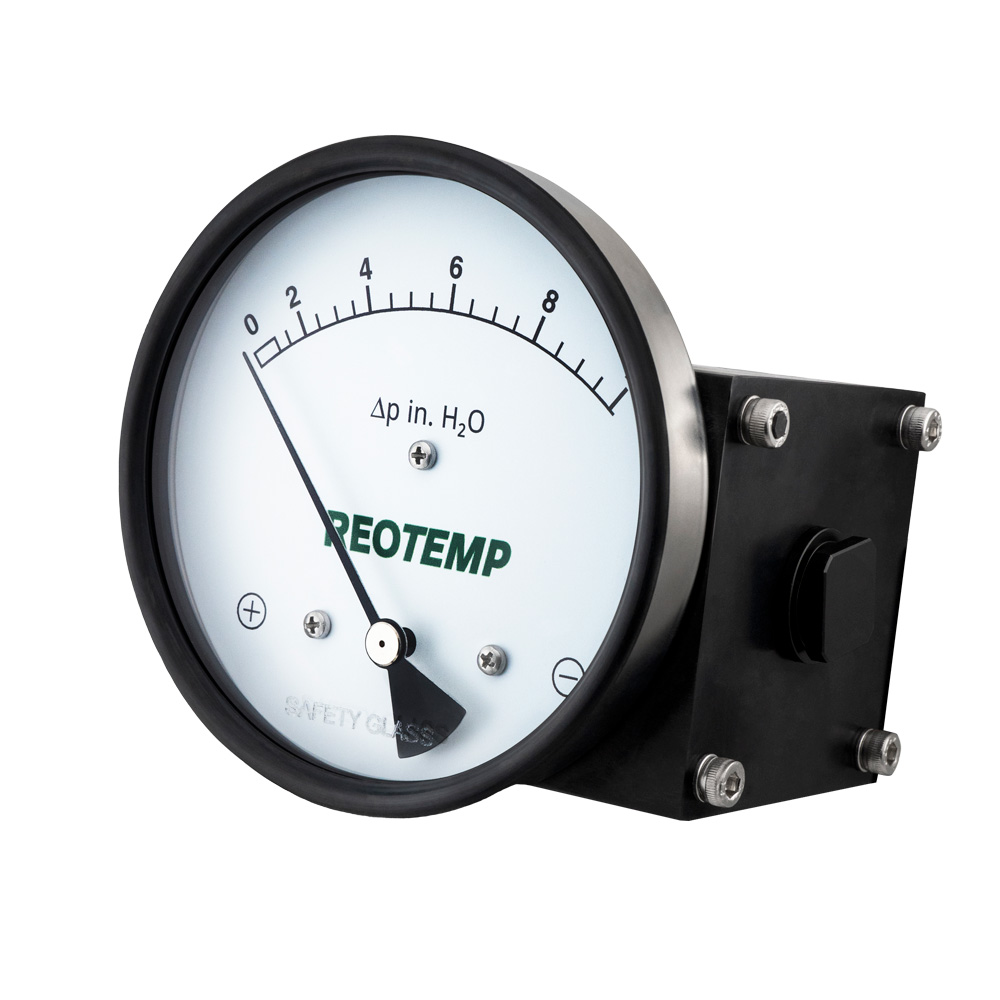

D33 Diaphragm Type Mechanical Differential Pressure Gauge
Fillable
Reotemp Series D33 Diaphragm Type Mechanical Differential Pressure Gauge is recommended when no migration of process media from the high side to low side is permitted and the needed differential range is low. The mechanism utilizes a large convoluted diaphragm, magnet, and calibrated rotary movement. Perfect for use with air and collector bag filters, tank level measurement, HVAC systems, and flow rate monitoring.
- Rugged, Compact, Cost Effective Design
- Weatherproof Rated to NEMA 4/IP65
- Working Pressure Up to 500 psi
- Over-range Protection to Max Working Pressure on High Side
- 5 Year Warranty
Accuracy: ± 2% Full Scale Ascending
Range: 1-25″ H2Od
Wetted Materials:
Body: Aluminum or 316SS
Internal Parts: SS 302 Spring (Inconel Spring for NACE) and Ceramic Magnet
Diaphragm and Gaskets: Buna-N, Viton, EPDM, or Silicone
Lens: (Glass (Standard), Plastic, or Safety Glass
Case: 304SS, 316SS, or Engineered Plastic
Fillable: Yes
Maximum Working Pressure: 500 psi
Environmental Protection: NEMA 4/IP65
