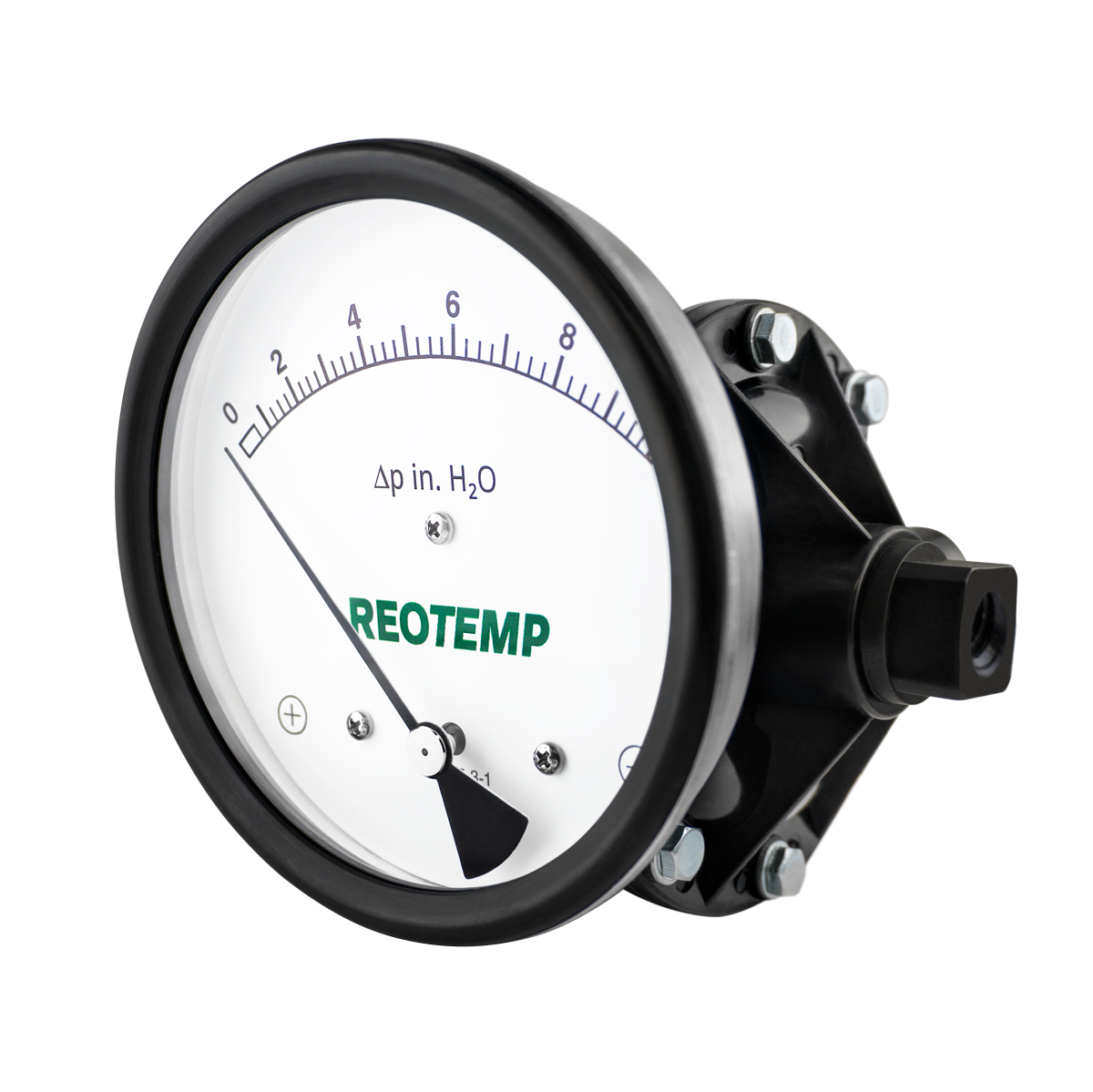

DMG MAGNETIC POINTER MECHANICAL DIFFERENTIAL PRESSURE GAUGE

Reotemp’s Series DMG measures low differential pressure across filters, strainers, pumps, blowers, and liquid level applications without electronics. A convoluted diaphragm drives the pointer through a magnetic coupling rather than mechanical linkage. Process media never migrates between the high and low sides, and ranges as low as 0.5″ H₂O are readable at a glance. Available with 304SS, 316SS, or engineered plastic cases and a choice of Buna-N, Viton, or EPDM diaphragms, the DMG handles air, gas, and liquid service in a single rugged, weatherproof package, backed by a 5-year warranty.

• Reads Down To 0.5″ H₂O For Filter, HVAC, And Tank Level

• Air, Gas, And Liquid Compatible with Buna-N, Viton, Or EPDM Diaphragms

• No Electronics To Maintain

• Large Convoluted Diaphragm Prevents Media Migration

• Over-Range Protection To 35 Psi Working Pressure on High Side

• Compound/Bidirectional Ranges Available

• Optional Reed Switches With Adjustable Set Points

• 5-Year Warranty
