HIGH ACCURACY PROCESS DIFFERENTIAL PRESSURE GAUGE
Fillable
Diaphragm Seal Compatible

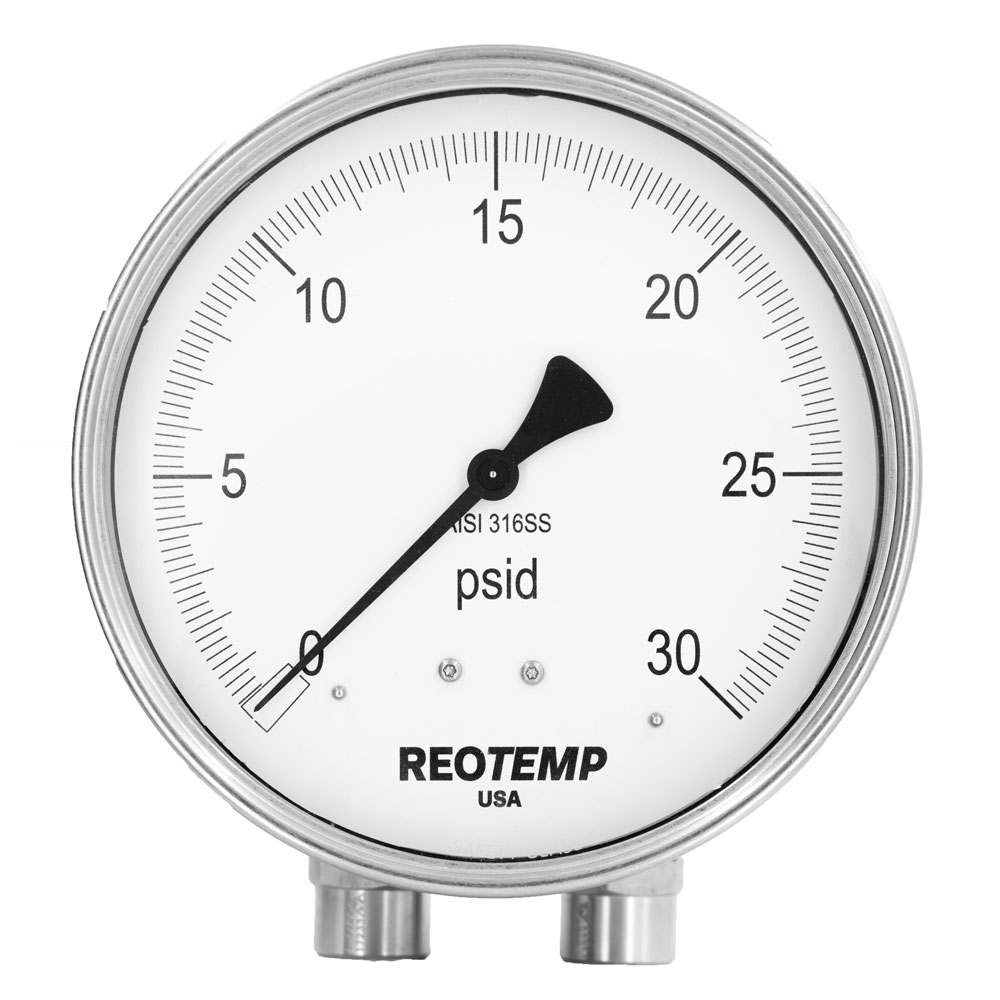

Reotemp Series D50 differential pressure gauges are widely used in the process industry on dissimilar liquids and gasses that require a rugged all stainless steel construction. With a large dial face, full 270° arc, and optional Hi-Vis™ dial, this highly accurate gauge is easy to read in many different lighting conditions. The high and low housings are equipped with the ability to flush out solid particles that build-up within the pressure chamber. Inside the pressure chambers are corrosion resistant diaphragms that are liquid-filled to compensate static pressure. The outer body and process ports mimic the dimensions of most field-mount differential pressure transmitters and allow for easy mounting to a manifold.
- Rugged All Stainless Steel Construction
- High Accuracy: +/-1.6% FS or upgrade to +/-1% FS
- Easy-to-Read 270° Dial Arc
- External Zero Adjustment
- High/Low Chamber Flushing Ports
- Up to 750°F Max Working Temperature with Diaphragm
Seals
| Accuracy | +/- 1.6% Full Scale +/-1% Full Scale (Optional) |
| Temperature Limits | Ambient: 0/175° F Process: 0/212° F Process with Diaphragm Seals: -110° F / 750° F* *Exact limits depend on diaphragm seal model, fill fluid, and mounting |
| Wetted Materials | Body: 316SSL Housing Diaphragms: 16 to 160”WC – 316SS Ti Diaphragms: 10 to 400 psid – NiCrCo- Alloy (Duratherm) Optional Diaphragm: Hastelloy C-276 Gaskets/Seals: Viton |
| Non-Wetted Materials | 304SS Case and Bezel Alumium Dial and Pointer Laminated Safety Glass Lens (Acrylic Optional) Silicone Filled System |
| Fillable Case | Yes |
| Maximum Working Pressure | 600psi (1,500psi optional) |
| Environmental Protection | Dry: Nema 3S (IP54) Filled: Nema 4 (IP65) |
