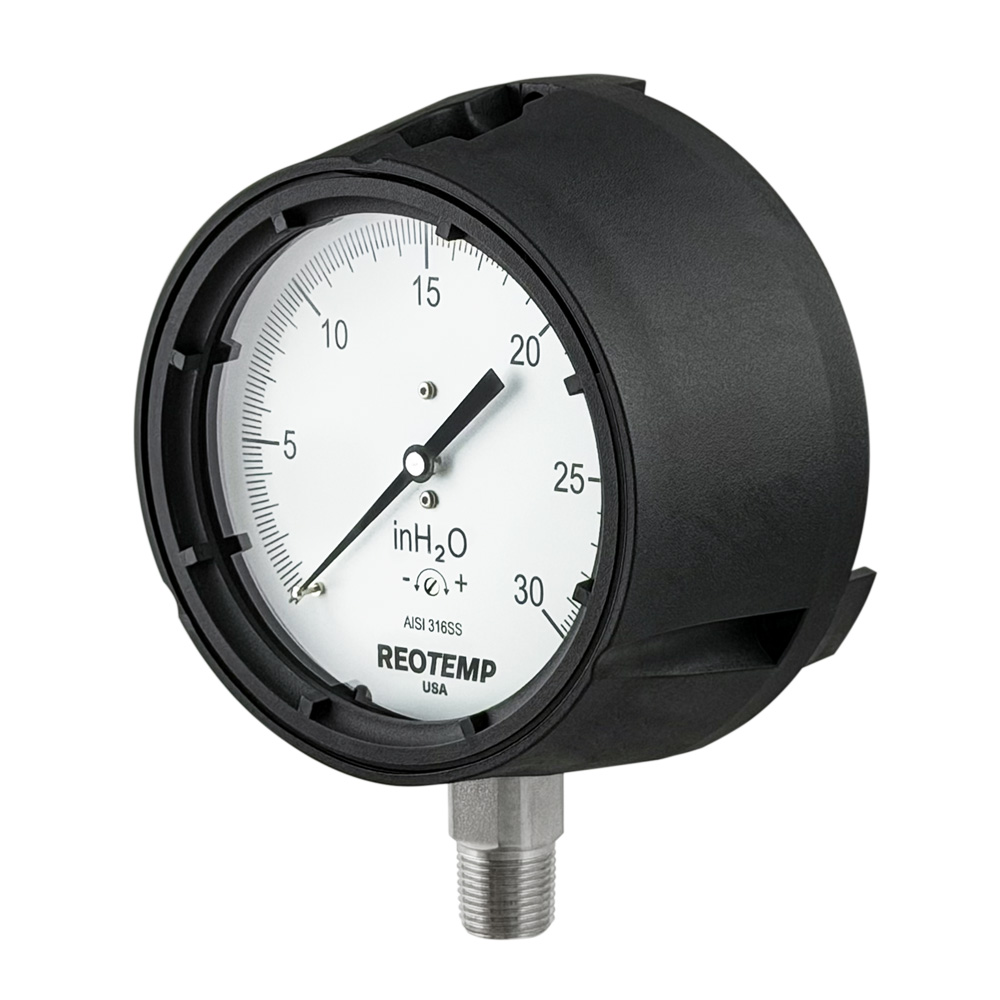

4.5″ LOW PRESSURE CAPSULE GAUGE
Custom Logo
Hi-Vis™
Diaphragm Seal Compatible
Reotemp’s Series PC45 low pressure capsule gauges offer accurate and reliable measurements of gaseous media. Offered with stainless steel internals, they are designed to withstand corrosive media and ensure a precise measurement for years.
- Sensitive Diaphragm/Capsule Mechanism
- Safety Blowout Back
- Easy-Access Zero Reset on Dial
Accuracy: +/-2-1-2% of Span (Grade A)
Ambient Limits: -40°F to 150°F
Process Limits: -40°F to 200°F
Process Limits with Diaphragm Seal:
Direct Mount: -60°F/350°F *
Remote Mount or Cooling Tower: -110°F/750°F*
*Exact limits depend on diaphragm seal and fill fluids.
Wetted Materials:
Capsule: 316LSS
Socket: 316SS
Lens: Tempered Safety Glass, Plastic or Laminated Safety Glass
Case: Impact Resistant, Fiberglass Reinforced PBT, Flame Retardant to UL94 V-0 Standards
O-Ring: EPDM
Fillable: No
Restrictor Screw: Yes
Max Working Pressure:
Stable = 100%,
Momentary = 130% of scale
Weight: 2.3 lbs
