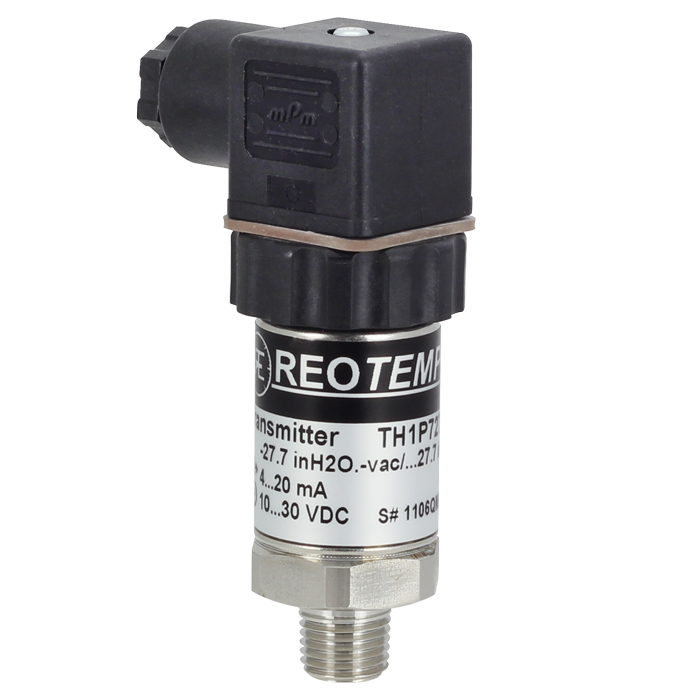

TH Heavy Duty Industrial Transmitter

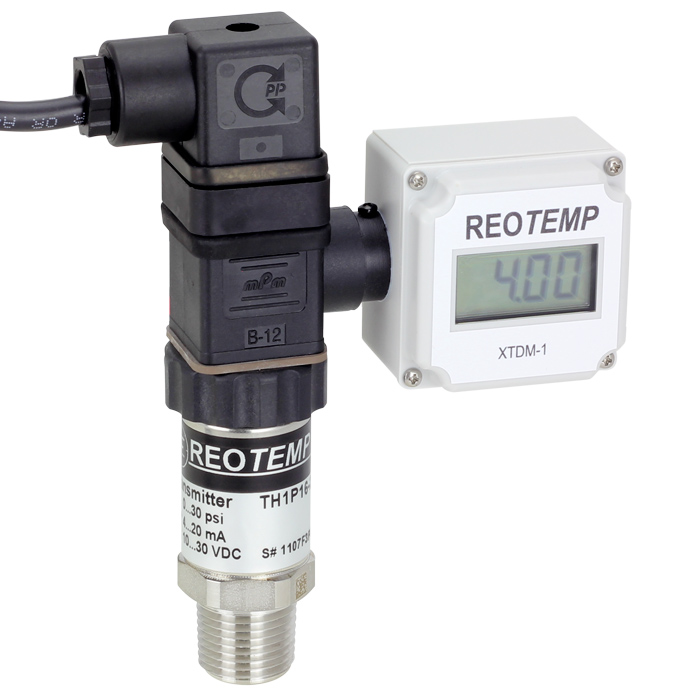

TH Heavy Duty Industrial Transmitter with Piggyback Display
Request a Quote

INTRINSICALLY SAFE TRANSMITTER

Diaphragm Seal Compatible

  • 0.12% or 0.25% accuracy
  • All-stainless Welded Body and Wetted Parts
  • Very Large Pressure Range
  • Engineered for High Stability, Shock Resistance, and Durability
  • Internal Zero and Span Adjustments
Output Signal: 4-20mA, 2-wire (standard) 0-5Vdc or 1-10Vdc (3-wire)
Pressure Ranges: Vaccum, compound, pressure to 60,000 psi; gauge and absolute

Proof Pressure Burst Pressure
0/5 – 0/200 psi 3 x range 3.8 x range
0/300 – 0/10,000 psi 1.75 x range 4 x range
0/15,000 psi 1.5 x range 3 x range
0/20,000 – 0/120,000 1.2 x range 1.5 x range

Accuracy(BFSL): ±0.25% of span (standard), ±0.11% of span (optional)
Adjustment: ±10% full scale, zero & span
Input: 12-30 Vdc (for current output), 14-30 Vdc (for voltage output)
Temperature:
Compensated: +32 to 175°F (0/80°C)
Effect: ±0.01% of span/°F (on zero and span)
Media: -20 to 212°F (-30/100°C)
Ambient: -15 to 185°F (-10 to 85°C)
Weight: Approxamately 7.2 oz (187g)
