G42

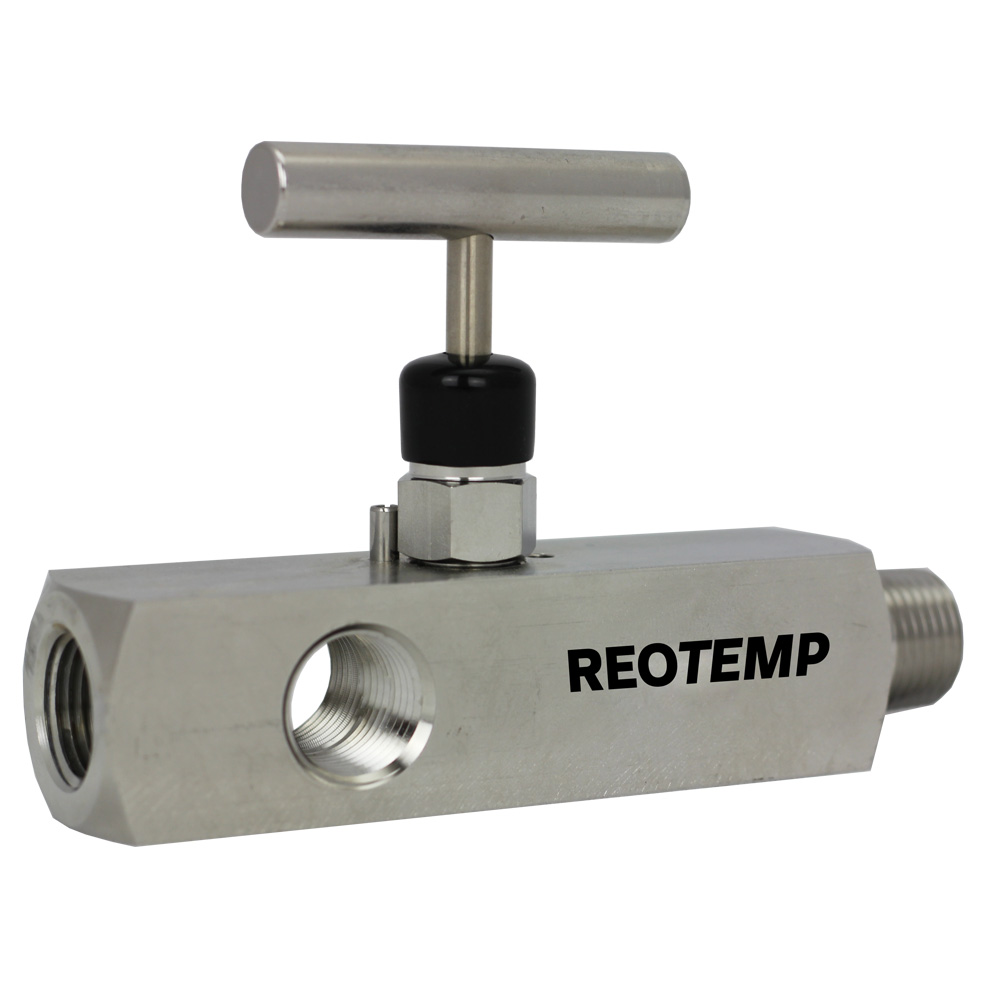

G42 MULTIPORT BLOCK & BLEED
Multiport gauge valves allow users to isolate pressure, bleed excess process, and remove instruments without a system shutdown. There is a single shutoff for the inlet and three female outlet ports that can connect to instruments, bleeds, process piping, valves, or plugs.
- Complies with MSS SP-99 and MSS SP-132 Standards Where Applicable
- Rolled Threads for Strength, Durability, and Ease of Use
- Many Plug Options Available
- 316SS Body Option Complies with NACE MR0175
- Leak Tested Before Shipping
- Available Factory-Installed on Reotemp Instruments
Body Material: 316SS, Carbon Steel, Monel, Hastelloy C276, Duplex 2205, Super Duplex 2507
Max Pressure Rating: 10,000 psi
Min/Max Temperature Rating: -67°F to 1,000°F
Seats Available: Hard, POM, PEEK, PCTFE, ETFE
Connections Available: 1/4”NPT, 1/2”NPT, 3/4″MNPT
