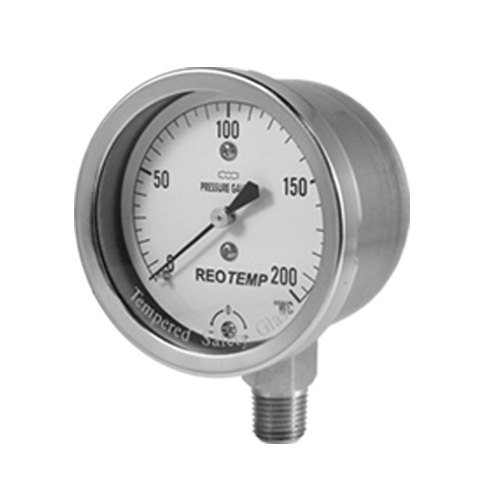

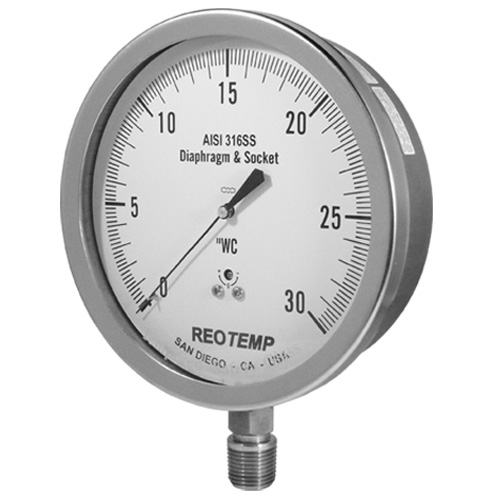

ALL STAINLESS STEEL LOW PRESSURE GAUGE
Custom Logo
Hi-Vis™
Diaphragm Seal Compatible
REOTEMP’s Series PCS low pressure gauges offer accurate and reliable measurements of gaseous media. Offered with stainless steel internals, the Series PCS is designed to withstand corrosive media and ensure a long-lasting instrument.
- Sensitive Diaphragm/Capsule Mechanism
- All-Welded 316 Stainless Steel Capsule and Socket
- Easy-Access Zero Reset Screw on Dial
- NACE MR-0175 and MR-0103 Compliant
- ASME B40.100 Design
Non Wetted
Case: 304SS
Ring: 304SS, Bayonet Twist-Off
Dial: White Aluminum, Black Letters
Wetted
Capsule: 316LSS
Socket: 316SS
Case-to-Socket
Screw Connection & Vented Case
Lens
Tempered Safety Glass (Stdandard), Plastic, or Laminated Safety Glass
Temperature Limits
Ambient
-40°F to 150°F
Process
-40°F to 200°F
Process When Assembled with a Diaphragm Seal
Direct Mount: -60°F to 350°F
Remote Mount or Cooling Tower: -100°F to 750°F
Accuracy: 1.6% Full Scale, ASME Grade A+
Fillable: No
Restrictor Screw: Yes
Max Working Pressure: Stable = 100%, Momentary = 130% of scale
Weight: 2.5” = 0.5 lbs, 4” = 1.1 lbs, 6” = 2.1 lbs
