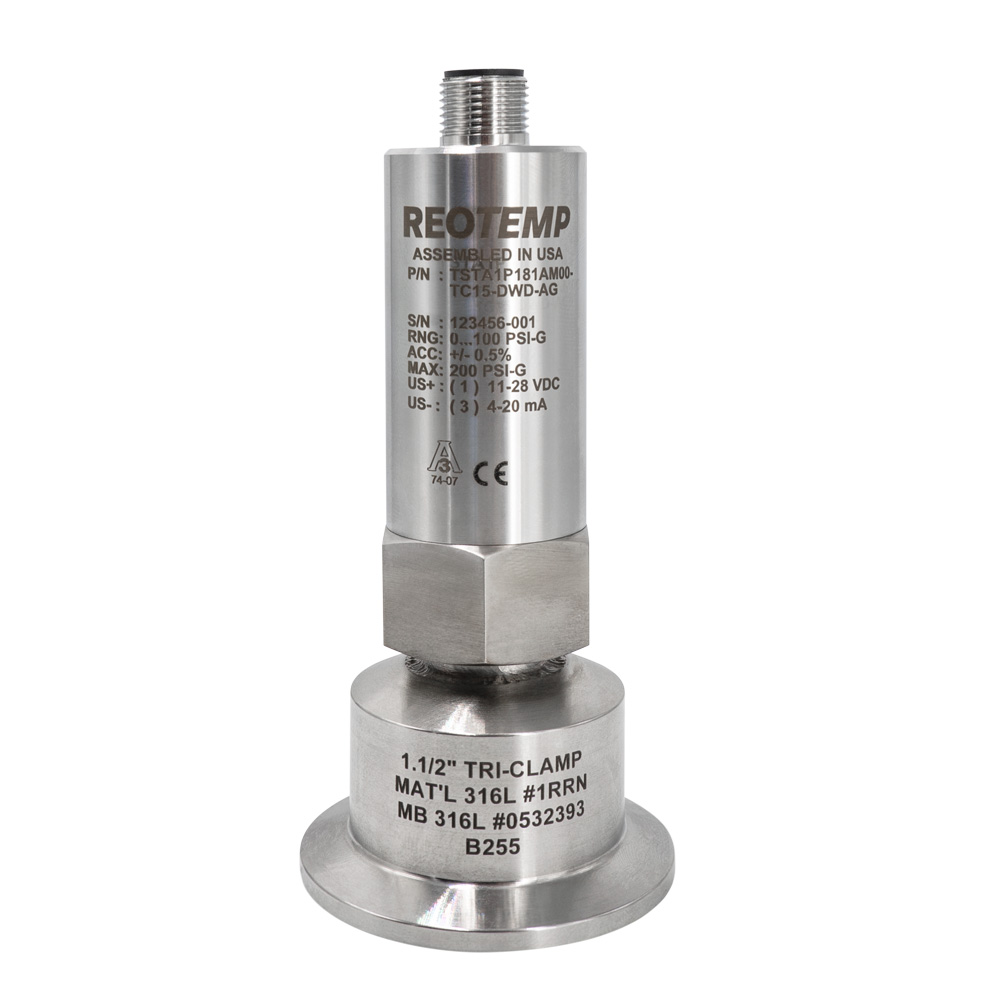

TSTA SANITARY INDUSTRIAL PRESSURE TRANSMITTER
Diaphragm Seal Compatable
- 3-A, Tri-Clamp® Sanitary Connection
- 316 Stainless Wetted Parts
- Designed for “Clean-in-Place” (CIP) and “Sterilize-in-Place” (SIP)
- Media Temperatures up to 750°F
- ± 0.5% Accuracy (3/4″ Tri-clamp® ±1.0%)
- Excellent Long-Term Stability
Output Signal: 4-20mA, 2-Wire (Standard), 0-5V, 0-10V, (3-Wire) Additional Outputs Upon Request
Measuring Principle: High-Stability Silicon Piezoresistive
Pressure Ranges: Vacuum, Compound, Pressure to 1,000psi
Proof Pressure: 2 x Range, Up to a Maximum of the “Clamp” Pressure Rating
Burst Pressure: Determined By Customer’s “Clamp” Pressure Rating Up to a Max of 2,000 psi
Accuracy NLH at 77°F: ±0.5% (3/4″ Tri-Clamp® ±1.0%)
Input: 11-28 VDC (4-20mA, 0-5V) 15-28 VDC (0-10V)
Temperature Effect: 1.5″ or 2″ Tri-Clamp®: ±0.1% of Span/10°F (for Zero and Span) or ±0.02 psi/10°F (Greater of) Note: 3/4″ Tri-Clamp® Not Recommended for Temperature Variations. Effect is ≤ ±0.9 psi/10°F
Weight: Approximately ≤ 9.5 oz Tri-Clamp® Weight Additional.
Environmental Rating: IP65 (Hirschmann, M12), IP68 (Cable)
