W9TW Taylor Wedge Diaphragm Seal

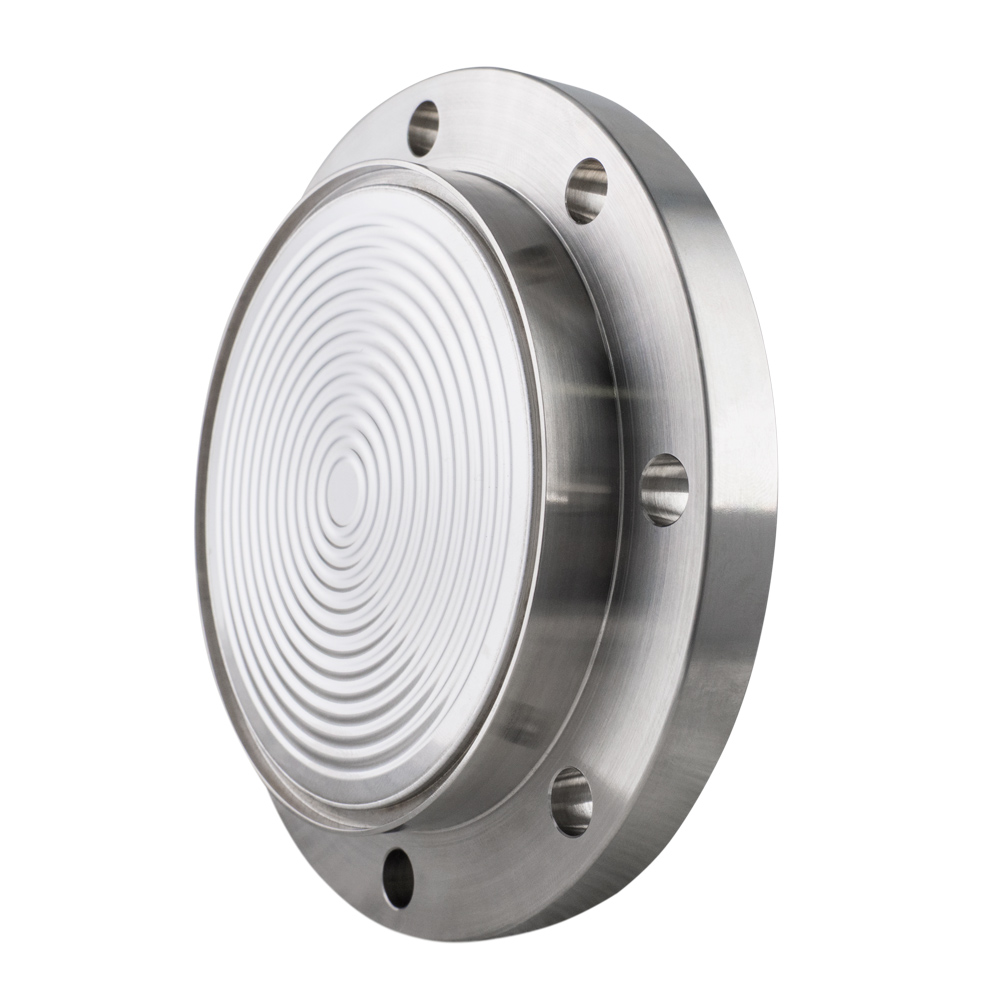

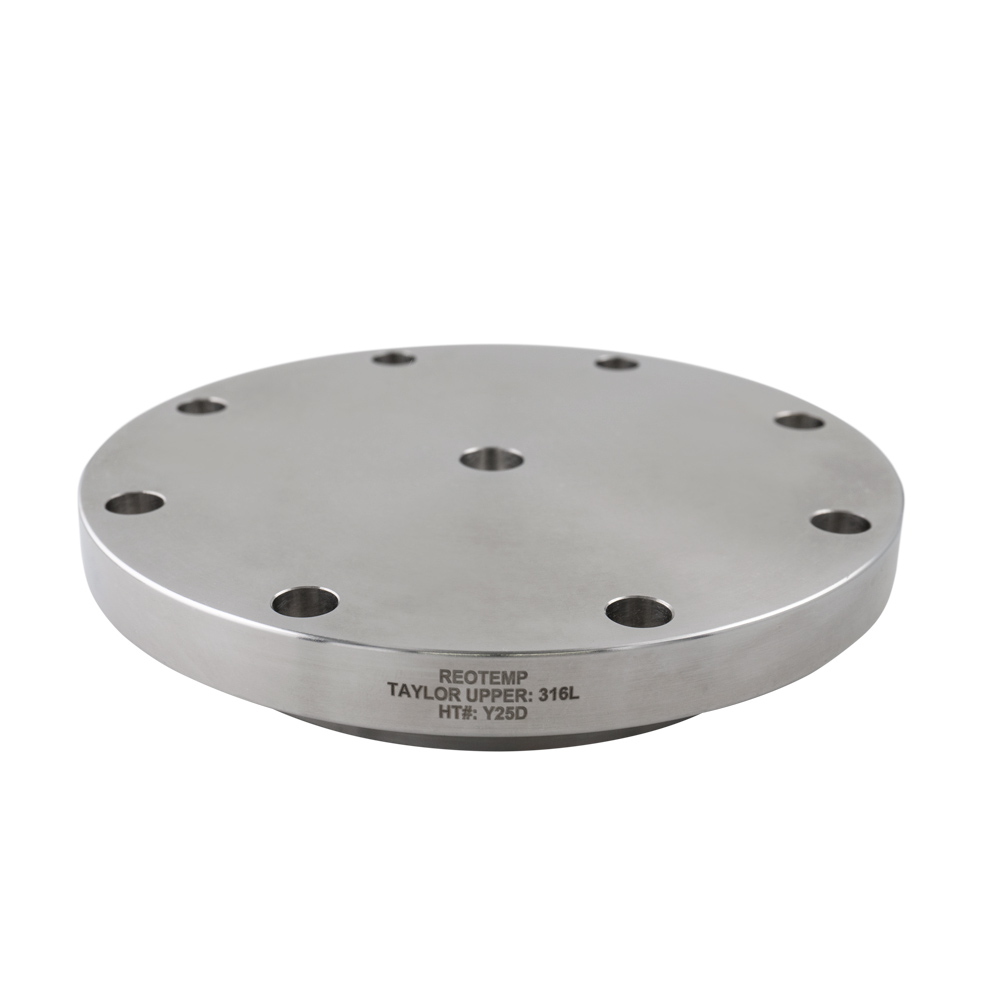

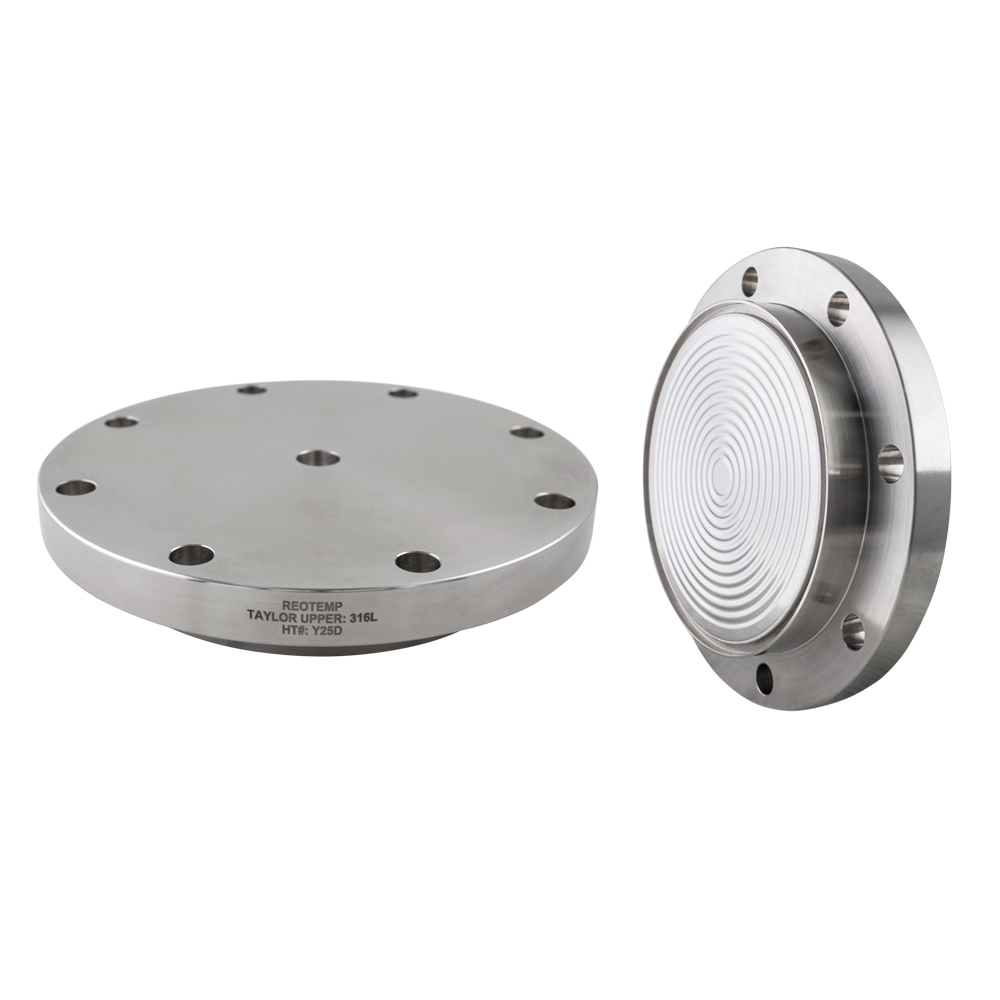

Reotemp’s Taylor Wedge Diaphragm Seal is designed with a diaphragm welded to the upper housing and bolted together to an existing wedge meter. This removable design allows for easy cleanout of the wedge chamber, while still maintaining the system fill. The Taylor Wedge diaphragm seal can be adapted to fit almost any pressure instrument and process condition.
- Welded Diaphragm for Maximum Durability
- Wide Variety of Diaphragm and Material Options
- Continuous-duty Protects from Process Fluid Leaking in the Event of a System Breach
- Easy Cleanout of Diaphragm Cavity without Compromising Filled System
Construction Materials
Diaphragm: 316/316L SS, Hast C-276, Tantalum, Monel A400, Nickel 200, or Others
Upper Housing: 316/316L SS, Hast C-276, Monel A400, Alloy 20, Hast B, 304/304L SS, or Others
Gasket: Klinger C4401, Grafoil
Process Temperature Limits:
Maximum Temperature 750°F, See Gasket Selection Guide p.100, Fill Fluid Guide Page 105, and Instrument Mounting Configurations Page 98 for exact Temperature Limits
Ambient Temperature Limits
Determined by the Pressure Instrument
Minimum Recommended Span
W9TW | |
2.5” & 3.5” Gauges | 10 psi |
4”, 4.5”, & 6” Gauges | 10 psi |
Transmitter (Gauge Pressure) | 30” H2O |
Transmitter (Differential Pressure) | 30” H2Od |
Differential Pressure Gauge | N/A |
Weight (approximate)
Upper Assembly Only | |
W9TW | 5.8 lbs |
Maximum Working Pressure (All Pressure in psi)
Process Temperature (°F) | Grade 8 Bolts | 316SS Bolts |
100 | 500 | 300 |
200 | 430 | 260 |
300 | 390 | 235 |
400 | 360 | 215 |
500 | 335 | 200 |
600 | 315 | 190 |
650 | 310 | 185 |
700 | N/A | 180 |
750 | N/A | 175 |
