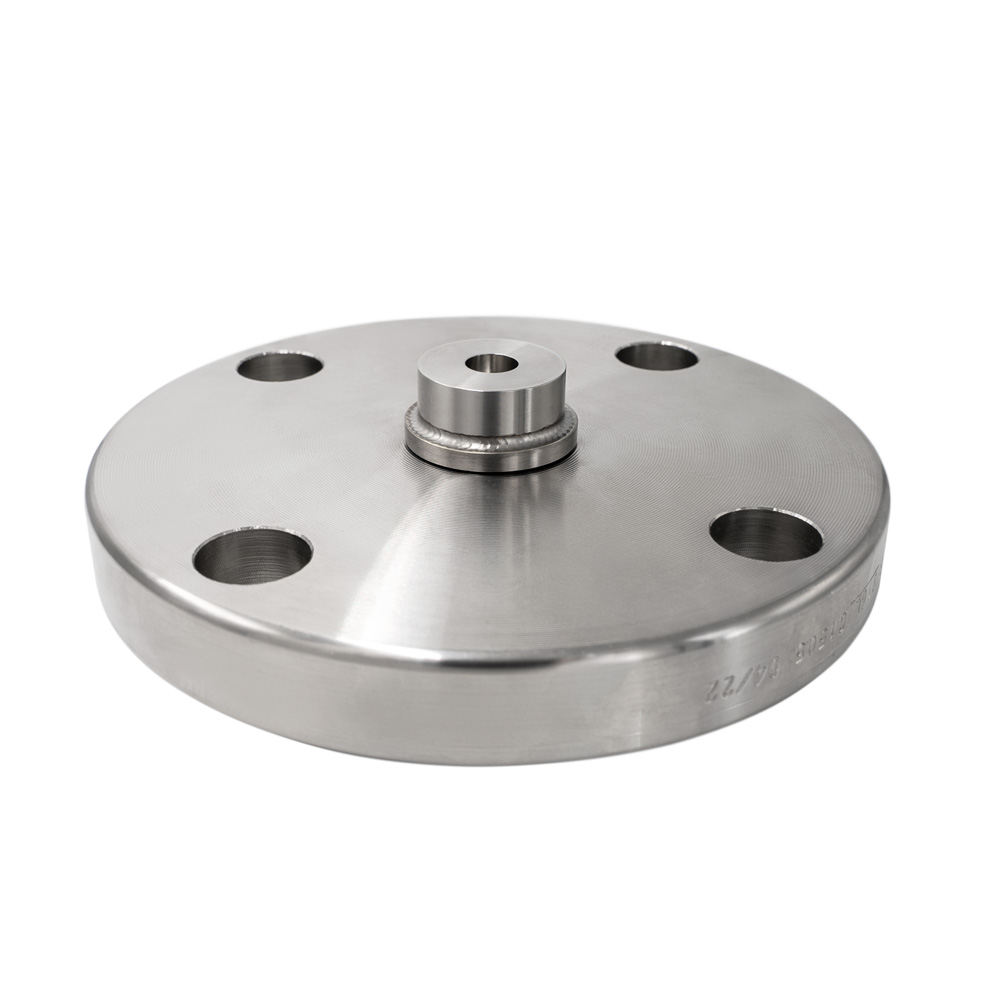

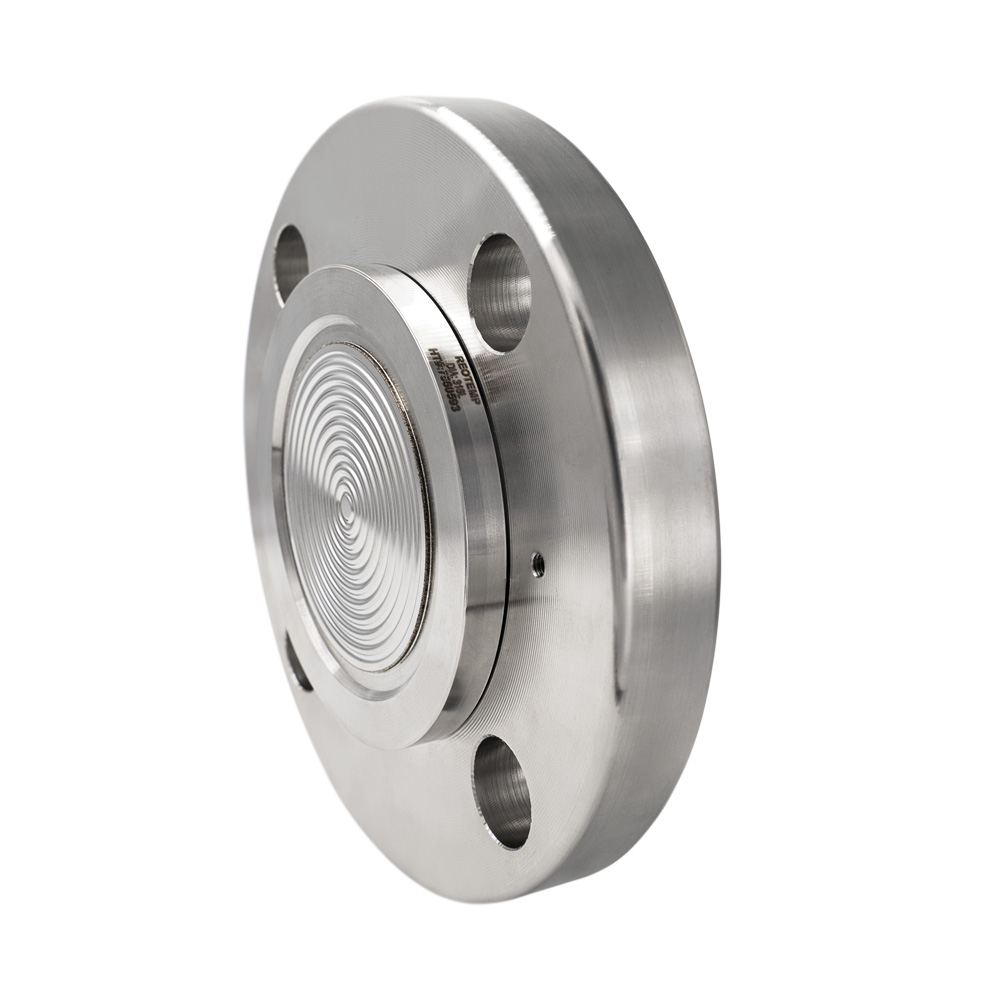

TWO-PIECE FLANGED FLUSH FACE DIAPHRAGM SEAL

Reotemp’s W9FR two-piece flanged flush-face seal keeps the process stream sweeping clean across the diaphragm to prevent solids buildup. Its insert-style, all-welded construction lets the diaphragm and sealing face be fabricated from an alloy other than the flange—ideal when Tantalum, Hastelloy, Monel, or other exotic wetted materials are required. The rotating flange further simplifies bolt alignment during installation.

Multi-piece Seal Design Bolts Directly to Process Flange
Center Instrument Exit
Commonly Supplied with Flush/Calibration Ring
Ideal for Gauge or Differential Pressure Transmitters

Specifications

Non-Wetted Materials

Flange: 316 SS or Others

Wetted Materials

Insert/Diaphragm: Hast 276, Tantalum, Monel, or Others

Process Temperature Limits

-150° to 850°F

Ambient Temperature Limits

Determined by the Pressure Instrument

Minimum Recommended Span

Diaphragm Size	1.3″	1.9″	2.2″	3.5″	4.1″
2.5″ & 3.5″ Gauges	N/A	30 psi	15 psi	10 psi	30″ H2O
4″, 4.5″, & 6″ Gauges	N/A	60 psi	30 psi	10 psi	30″ H2O
Transmitter (Gauge Pressure)	50 psi	15 psi	150” H2O	30” H2O	15″ H2O
Transmitter (Differential Pressure)	20 psi	200” H2O	100” H2O	30” H2O	15″ H2O
Differential Pressure Gauge	N/A	N/A	N/A	N/A	100” H2O

Available Diaphragm Sizes

Diaphragm Size	1.3″	1.9″	2.2″	3.5″	4.1″
1″ Flange	STD	N/A	N/A	N/A	N/A
1.5″ Flange	N/A	STD	N/A	N/A	N/A
2″ Flange	N/A	-D6	STD	N/A	N/A
3″ Flange	N/A	-D6	-D5	STD	N/A
4″ Flange	N/A	-D6	-D5	-D9	STD
6″ Flange	N/A	-D6	-D5	-D9	STD

Weights and Dimensions

	Flange Rating	A	B	# of Bolts	Weight (lbs.)
1″	150#	4.25″	.88″	4	2
1 ½”		5”	1”	4	4
2”		6”	1.06”	4	5
3”		7.5”	1.25”	4	9
4”		9”	1.25”	8	17
1″	300#	4.88″	1″	4	4
1 ½”		6.13”	1.12”	4	7
2”		6.5”	1.2”	8	8
3”		8.25”	1.44”	8	16

Maximum Working Pressures at 100ºF:
Determined by ANSI B16.5 flange ratings.

NOTE: Weights and dimensions is for raised face flange only. Other flange sizes and sealing face info can be found in ANSI B16.5 standards.

W9FR Two-Piece Flanged Flush Face Diaphragm Seal
